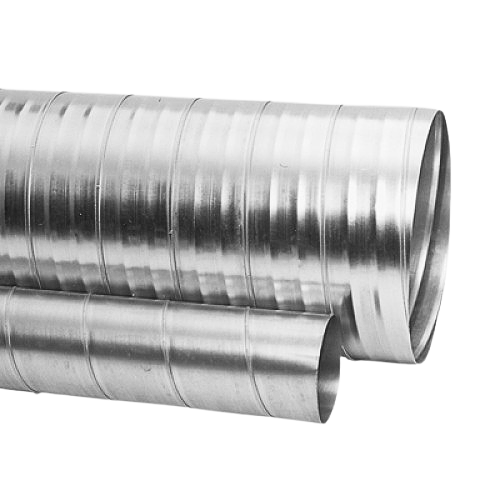

Ø630 mm spiral air duct SR 630 / 3 m
€148.35
Ø 630 mm round spiral duct made of galvanized steel sheet is a large diameter air duct designed for high-capacity ventilation systems with 630 mm connections. It is suitable for commercial and industrial air distribution networks where strong construction, stable airflow, and long service life are required.
– Ø 630 mm circular air duct with thickness 0.7 mm and length 3 m made of galvanized steel sheet.
– Designed for large diameter main ventilation systems.
– Suitable for supply and exhaust air systems, HVAC installations, and air distribution in residential, commercial, and industrial buildings.
Advantages
Durability: Galvanized steel offers high resistance to corrosion and mechanical damage
Efficient airflow: The smooth internal surface minimizes air resistance, ensuring efficient air movement
Easy installation: Spiral construction allows for easy and secure connection of multiple duct sections
Versatility: Suitable for use in both residential and commercial ventilation systems
– The spiral construction of SR 630 mm air ducts ensures strong joints and well-sealed seams.
– Working temperature: -30 °C to +120 °C.
– Maximum pressure: 2500 Pa and air velocity up to 20 m/s.
| Weight | 12 kg |
|---|---|
| Dimensions | 3000 × 630 × 630 mm |
| Product type |
Spiral air duct |
| Product diameter Ø (mm) |
630 |
| Length (m) |
3 |
| Wall thickness (mm) |
0.7 |
| Temperature range (°C) |
-30 / +120 |
| Maximum pressure (Pa) |
2500 |
| Operating air velocity (m/s) |
20 |
| Material |
Galvanized steel sheet |
| Color |
Silver |
