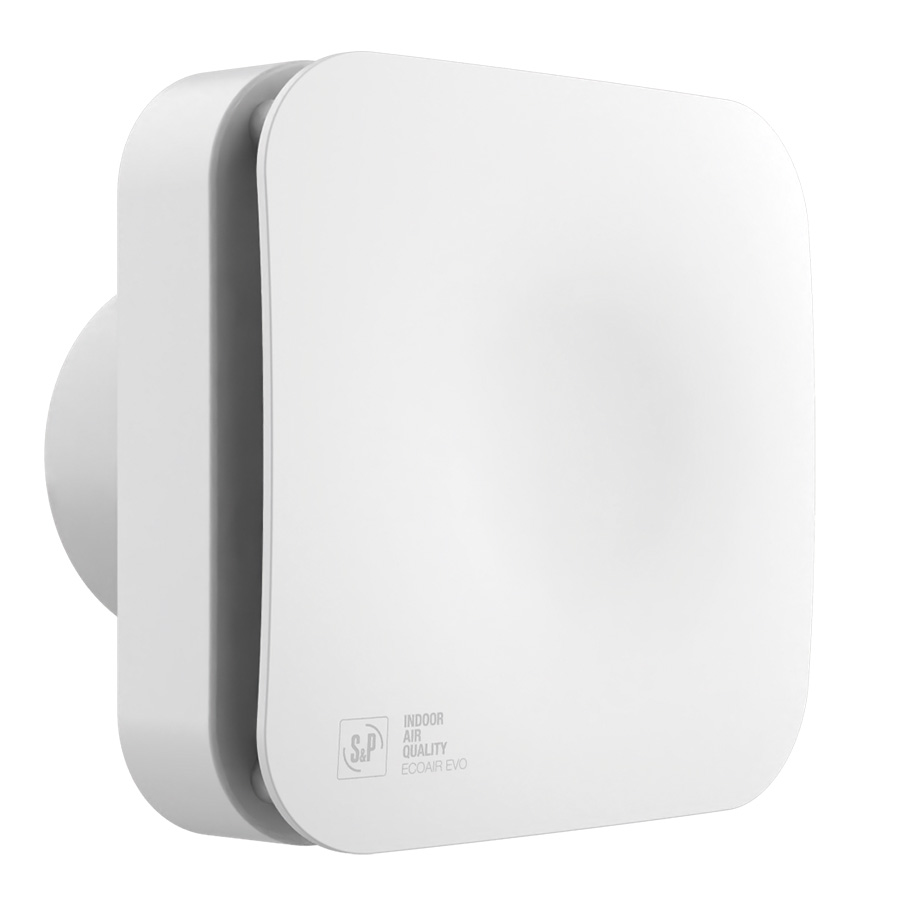

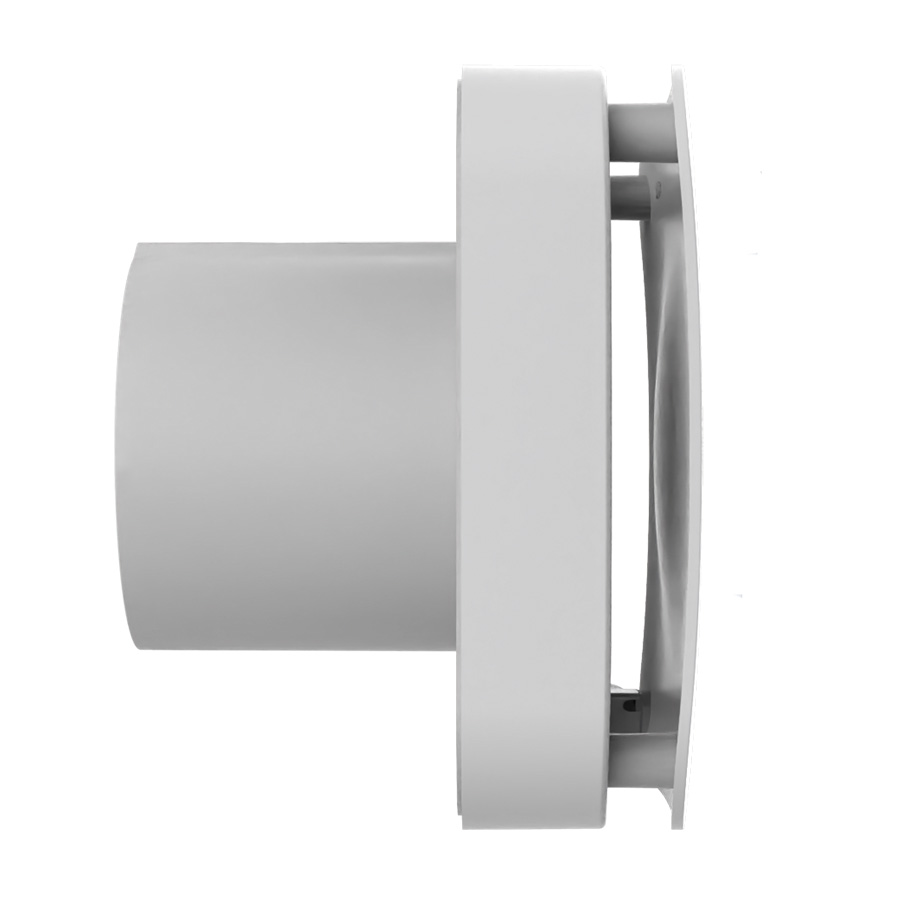

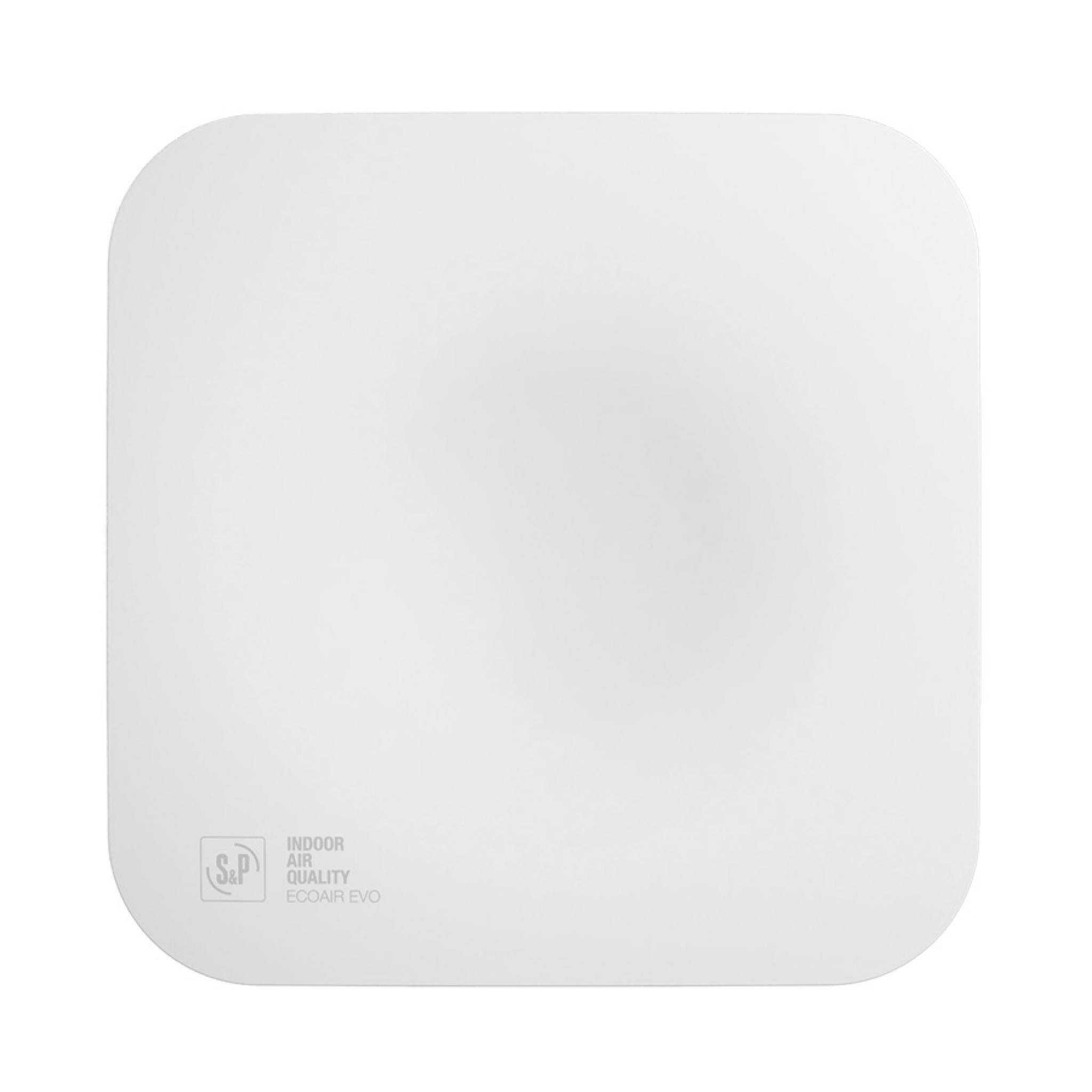

ECOAIR EVO HT Soler & Palau bathroom extractor fan with humidity sensor and timer Ø100mm
€167.31 Incl. VAT
Soler & Palau ECOAIR EVO HT intelligent ultra-quiet 100mm bathroom exhaust fan with humidity sensor, timer, and constant airflow technology. Designed for smart and energy-efficient ventilation, it features adjustable airflow speeds, powerful extraction performance, and silent operation from just 9 dB. Ideal as a bathroom extractor fan or ventilation fan for bathrooms, toilets, and humid spaces.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Soler & Palau ECOAIR EVO HT Quiet And Intelligent Ø100mm Bathroom Exhaust Fan with Timer And Humidity Sensor
The Soler & Palau ECOAIR EVO HT is a premium ultra-quiet Ø100mm bathroom exhaust fan designed for intelligent, continuous ventilation in bathrooms, toilets, kitchens, and utility rooms. Featuring a built-in humidity sensor, adjustable timer, and constant airflow technology, this advanced extractor fan automatically maintains healthy indoor air quality while reducing moisture, condensation, and odours.
Engineered with an energy-efficient EC motor, the ECOAIR EVO HT delivers powerful yet silent performance from just 9 dB(A), making it one of the quietest bathroom ventilation fans available. The integrated humidistat automatically activates boost mode when humidity levels rise, ensuring optimal extraction exactly when needed.
With adjustable trickle and boost airflow speeds, onboard digital display, and ultra-low energy consumption, this smart bathroom extractor fan offers the perfect balance of comfort, performance, and efficiency.
KEY FEATURES & BENEFITS
- For 100mm connection
- Ultra-quiet bathroom exhaust fan from only 9 dB(A)
- Built-in humidity sensor (humidistat) for automatic moisture control
- Adjustable run-on timer for continued extraction after use
- Advanced constant airflow technology for stable ventilation performance
- Adjustable trickle and boost airflow settings
- Energy-efficient EC motor with ultra-low power consumption
- Smart onboard display with airflow, humidity, and runtime monitoring
- Powerful extraction airflow up to 108 m³/h
- Continuous ventilation mode for improved indoor air quality
- IP45 rated for safe installation in humid environments
- Suitable for wall or ceiling installation
- Made in Spain
ECOAIR EVO FAN MODEL FEATURES

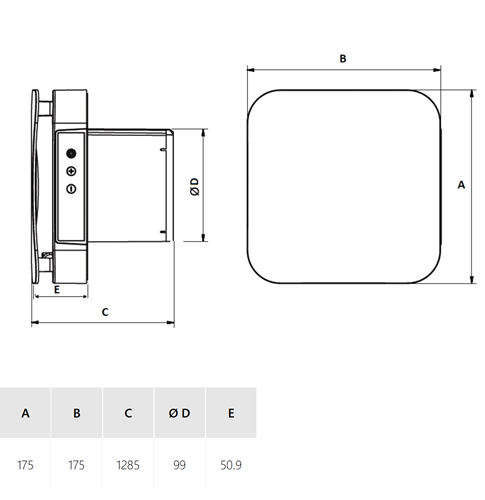

DIMENSIONS
ULTRA-QUIET & ENERGY EFFICIENT PERFORMANCE
Designed for continuous low-noise operation, the ECOAIR EVO HT combines high extraction performance with exceptionally low energy usage.

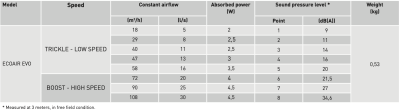

Airflow Performance
Trickle mode: 18 / 29 / 40 / 47 / 58 m³/h
Boost mode: 72 / 90 / 108 m³/h
Sound Levels
From only 9 dB(A) in trickle mode
Maximum 34.6 dB(A) in boost mode
Power Consumption
Only 2–4.5 W depending on speed setting
TECHNICAL INFORMATION
ADVANCED DIGITAL CONTROL PANEL
The integrated display and control panel provide easy access to:
- Real-time airflow rate
- Relative humidity level (HT model)
- Motor running time statistics
- Fan speed and timer settings
APPLICATIONS
Ideal for:
- Bathrooms
- Toilets / WC
- Shower rooms
- Utility rooms
- Kitchens
- Apartments and modern energy-efficient homes
- Spaces requiring quiet continuous ventilation
Perfect for reducing:
- Condensation
- Excess humidity
- Mould risk
- Steam build-up
- Unpleasant odours
| Weight | 0.79 kg |
|---|---|
| Dimensions | 210 × 160 × 220 mm |
| Product type | Bathroom and WC extract fan |
| Series | ECOAIR EVO |
| Functions | Humidity sensor, Timer |
| Connection diameter Ø (mm) | 100 |
| Backdraft shutter | No |
| Speed control | Automatic, Electronic, Variable |
| Operation mode | Boost, Continuous |
| Product features | Control panel, On board display |
| Airflow (m³/h) | 18-108 |
| Sound level (dB(A)) | 9-34.6 |
| Power (W) | 2-4.5 |
| Temperature range (°C) | 0 / +40 |
| Electrical supply | Single phase |
| Frequency (Hz) | 50/60 |
| Voltage (V) | 230 |
| Motor type | EC motor |
| Thermal overload protection | Yes |
| Protection Class | Class II |
| IP rating | IP45 |
| Mounting type | Ceiling mounted, Wall mounted |
| Height (mm) | 175 |
| Width (mm) | 175 |
| Depth (mm) | 128.5 |
| Weight (kg) | 0.53 |
| Material | Plastic |
| Color | White |
| Country of origin | Spain |
| Brand | Soler & Palau |
| Manufacturer Code | 5210021000 |
| BAR/EAN | 8445325202326 |
| Manufacturer | Soler & Palau |
