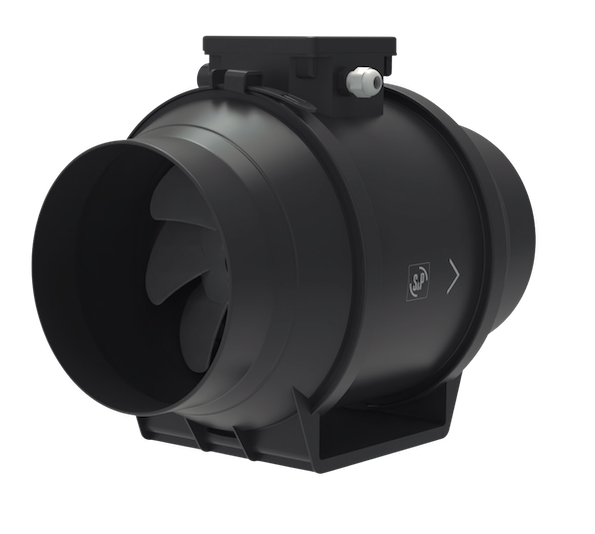

TD-200 P ECOWATT Soler & Palau mixed flow inline duct fan Ø200 mm (black)
€235.55 Incl. VAT
Soler & Palau TD-200 P ECOWATT mixed flow inline duct fan with an energy-efficient EC motor, designed for quiet and efficient ventilation. Delivering airflow up to 825 m³/h with low noise levels from just 55 dB(A), this Ø200mm inline duct fan features 4-speed control and a compact low-profile design, making it ideal for residential, office, and commercial ventilation systems.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Soler & Palau TD-200 P ECOWATT energy-efficient mixed flow inline duct fan with EC motor and very low profile
The Soler & Palau TD-200 P ECOWATT is a quiet mixed flow inline duct fan with an energy-efficient brushless EC motor, designed to deliver powerful and reliable ventilation for residential, office, and commercial applications. Providing airflow up to 825 m³/h with low noise levels from just 55 dB(A), this Ø200mm inline duct fan offers an excellent balance of high performance, energy efficiency, and quiet operation for continuous ventilation.

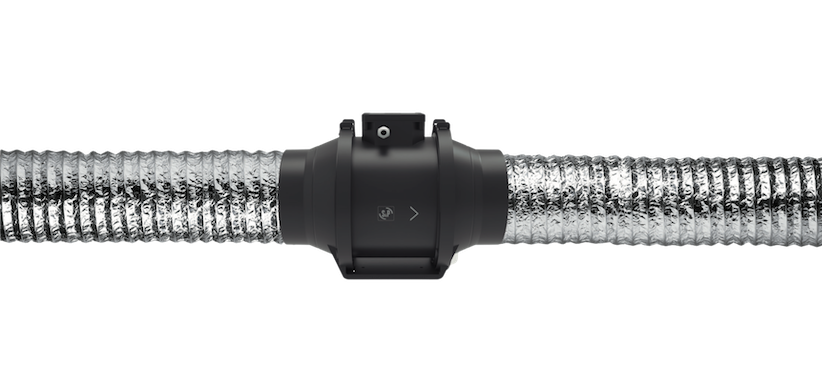

Its compact low-profile black housing allows installation in suspended ceilings and other areas with limited space while providing a modern, discreet appearance. The integrated 4-speed EC motor can be adjusted using the built-in potentiometer or an external 0–10 V control signal, allowing precise airflow control to suit different ventilation requirements.

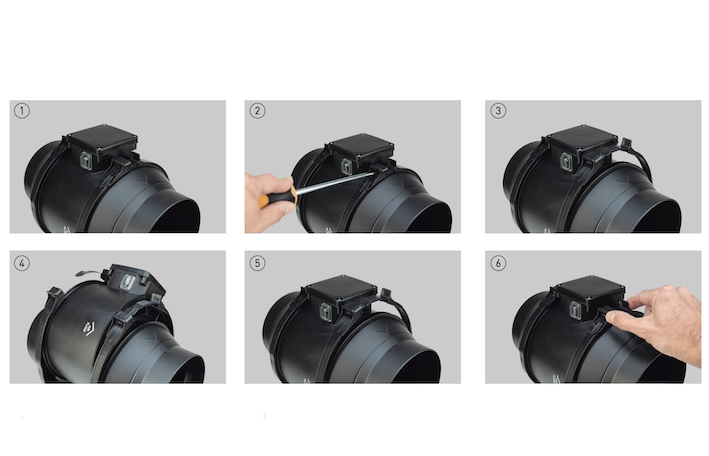

Designed for long-term durability, the fan features permanently lubricated ball bearings, thermal overload protection with manual reset, and an IP44 protection rating for reliable everyday operation. The unique mounting bracket allows the motor and impeller assembly to be removed without disconnecting the ductwork, making servicing and maintenance faster and more convenient.
TECHNICAL INFORMATION
KEY FEATURES
- Ø200mm mixed flow inline duct fan
- Energy-efficient brushless EC motor
- Airflow up to 825 m³/h
- Quiet operation from 55 dB(A)
- 4-speed motor
- Built-in potentiometer
- External 0–10 V speed control
- Compatible with REB-ECOWATT, AIRSENS, and CONTROL ECOWATT BASIC controllers
- Compact low-profile black housing
- Permanently lubricated ball bearing motor
- Removable motor and impeller assembly for easy maintenance
- Thermal overload protection with manual reset
- IP44 protection rating
- Class II insulation
- 230V ±10%, 50/60Hz
- Manufactured in Spain

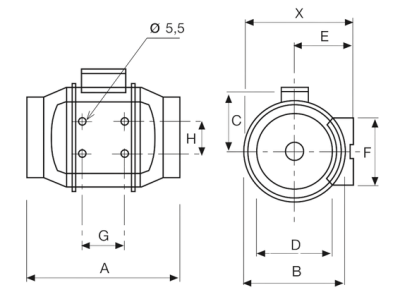

DIMENSIONS
APPLICATIONS
Ideal for large residential properties, offices, retail premises, restaurants, hotels, workshops, and commercial ventilation systems. This Ø200mm mixed flow inline duct fan is designed for continuous ventilation where high airflow, quiet operation, and low energy consumption are essential. Its compact low-profile design makes it particularly suitable for suspended ceilings and installations with limited space while providing easy access for future maintenance.
| Weight | 5.2 kg |
|---|---|
| Dimensions | 305 × 265 × 385 mm |
| Product type | In-line duct fan |
| Series | TD-ECOWATT P |
| Functions | Standard |
| Ball Bearings | Yes |
| Number of Speeds | 4 speeds |
| Speed control | Potentiometer, Single-phase speed controller |
| Speed (rpm) | 1190 / 1640 / 1840 / 2280 |
| Airflow (m³/h) | 471 / 601 / 737 / 825 |
| Sound level (dB(A)) | 42 / 48 / 51 / 55 |
| Power (W) | 13 / 31 /43 / 65 |
| IP rating | IP45 |
| Electrical supply | Single phase |
| Voltage (V) | 230 |
| Frequency (Hz) | 50/60 |
| Temperature range (°C) | -20 / +40 |
| Protection Class | Class II |
| Motor type | EC motor |
| Motor insulation class | Class B |
| Thermal overload protection | Yes |
| Mounting type | Ceiling mounted, Wall mounted |
| Height (mm) | 245 |
| Width (mm) | 207 |
| Length (mm) | 302 |
| Weight (kg) | 4.9 |
| Material | Plastic |
| Color | Black |
| Country of origin | Spain |
| Brand | Soler & Palau |
| BAR/EAN | 8445325242551 |
| Manufacturer Code | 5211017200 |
| Manufacturer | Soler & Palau |
