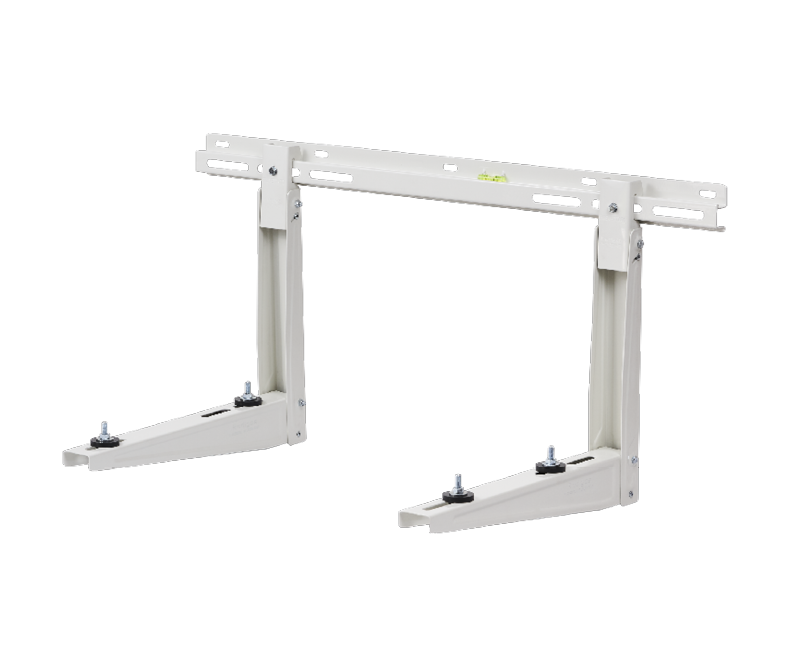

Rodigas MS 224 sliding wall bracket with safety hook 465x880mm, 140 kg
€35.82 Incl. VAT
Rodigas MS 224 adjustable wall bracket with safty hook for AC and heat pump outdoor units, made from electro-galvanised steel with UV and corrosion protection. Includes built-in level. Load 140 kg, 375x465x880mm
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments

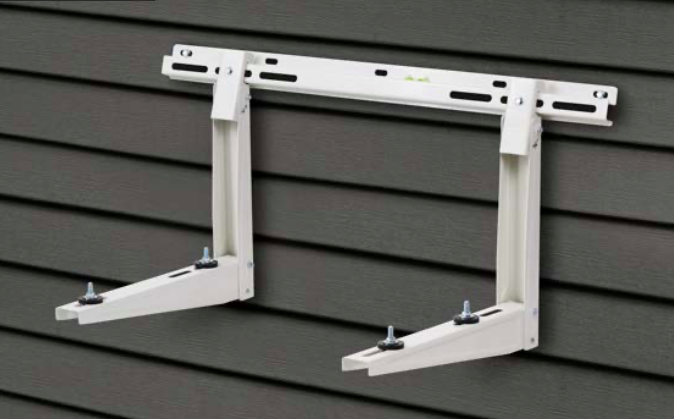

– The Rodigas MS 224 is a high-quality adjustable wall bracket designed for securely mounting air conditioner and heat pump outdoor units on brick or wooden façades.
– Made from electro-galvanised steel and coated with epoxy polyester resins, it provides outstanding resistance to corrosion, UV exposure and harsh outdoor conditions.

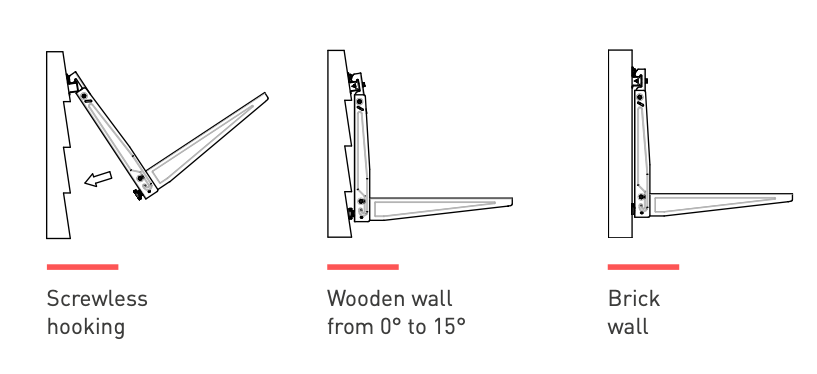

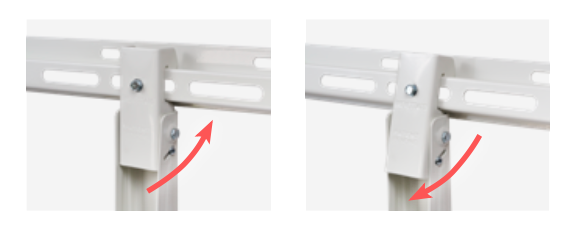

– The integrated safety hook allows 0–15° adjustment, making it ideal for uneven surfaces and wooden cladding.
– A built-in leveling system ensures precise alignment and easy installation, while the reinforced construction prevents vibrations and guarantees long-term stability of the outdoor unit.
– The MS 224 bracket is supplied with all necessary mounting accessories and is compatible with various multisplit and heat pump systems.
– Its adaptable design allows one bracket model to fit different outdoor units, making it a universal, reliable and long-lasting HVAC mounting solution made in Italy

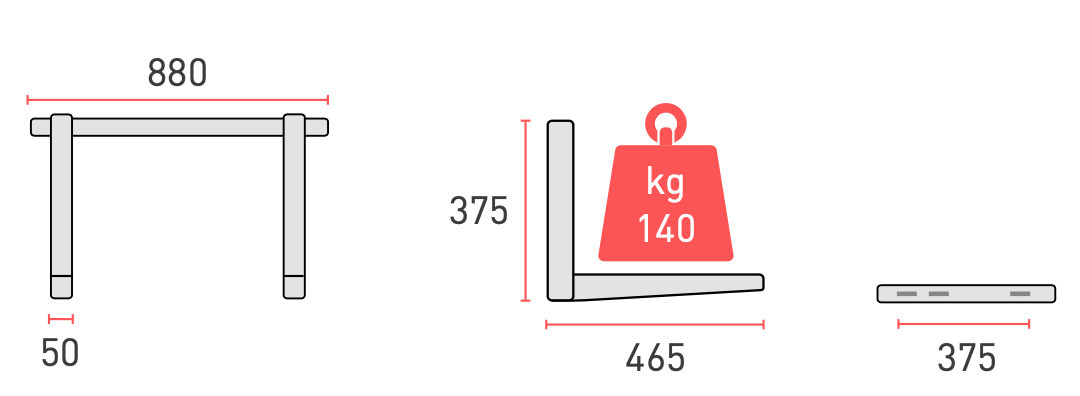

TECHNICAL INFORMATION:
Load capacity: 140kg
Width: 880 mm
Depth: 465 mm
Height: 375 mm
Weight: 4.73 kg
Color: white (9002)
Material: electro-galvanised steel plate, painting epoxy resins in polyester
Adjustment: 2 adjustable gummy polypropilene feet (patented)
Set includes: level to adjust the wall bar, wall fixing kit, insulating washers
Installation type: wall
| Weight | 4.84 kg |
|---|---|
| Dimensions | 965 × 95 × 95 mm |
| Product type | Wall bracket |
| Maximum load capacity (kg) | 140 |
| Width (mm) | 880 |
| Depth (mm) | 465 |
| Color | White |
| Material | Steel |
| Brand | RODIGAS |
