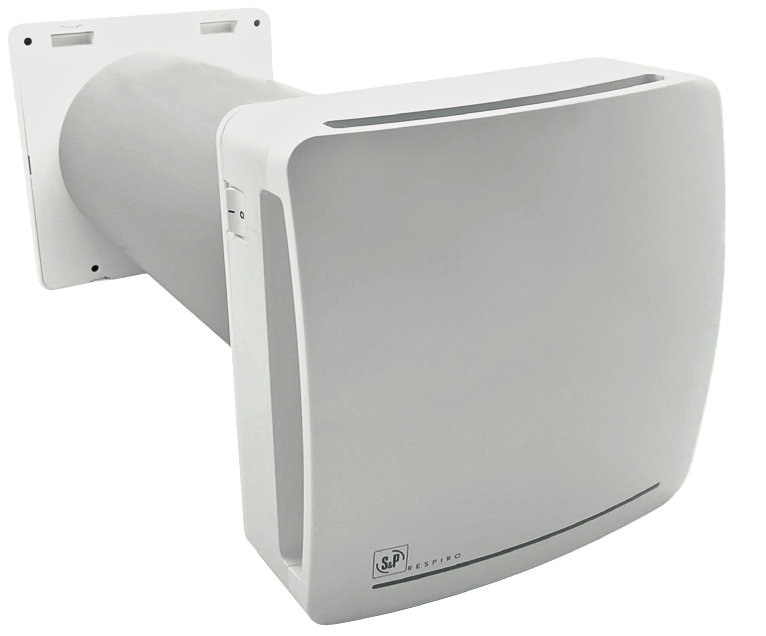

RESPIRO 150 RD N Soler&Palau wall-mounted mini heat recovery unit for a single room Ø160 mm (ceramic heat exchanger)

– The Soler&Palau RESPIRO 150 RD N is a compact decentralized wall-mounted heat recovery unit for a single room, combining elegant design, advanced technology and exceptional energy efficiency.

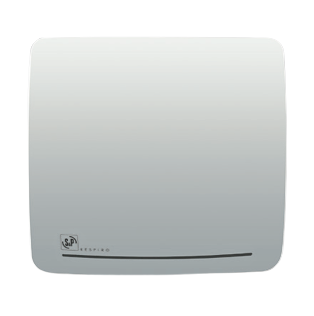

– Designed to blend seamlessly into any interior, its minimalist front cover adds both functionality and aesthetic appeal.

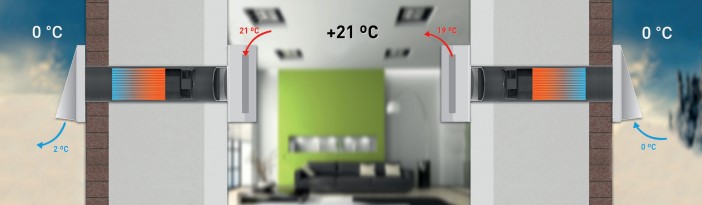

– This mini heat recovery unit uses a high-performance ceramic heat exchanger to recover up to 93% of heat, significantly reducing energy losses while ensuring a constant supply of fresh, clean air.

– Thanks to its decentralized heat recovery concept, it is ideal for renovations, new buildings and spaces where central ventilation systems are not feasible.

Key Features & Benefits

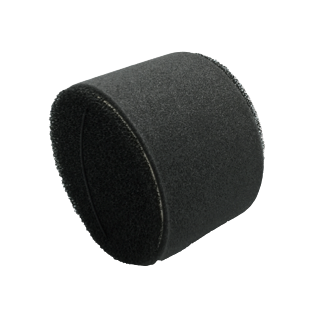

Equipped with G3 filters on both sides of the heat exchanger, ensuring effective removal of dust and airborne pollutants from incoming and outgoing air.

An alternative ventilation system allows full control of airflow direction and operation:
– Supply only
– Extract only
– Reversing impulsion and extraction.
– Security is only activated if humidity exceeds the limit

Proportional airflow regulated by an integrated humidity sensor (hygrostat), optimizing ventilation according to indoor moisture levels.

Supplied with a remote controller offering:
– 3 speeds
– Humidity control
– Multiple operating modes for maximum comfort and flexibility

Energy-efficient performance
Rated Energy Efficiency Class A, delivering high performance with very low power consumption.

Quiet and comfortable
Ultra-low noise levels starting from 13 dB(A) ensure silent operation, ideal for bedrooms, living rooms, offices and other noise-sensitive spaces.

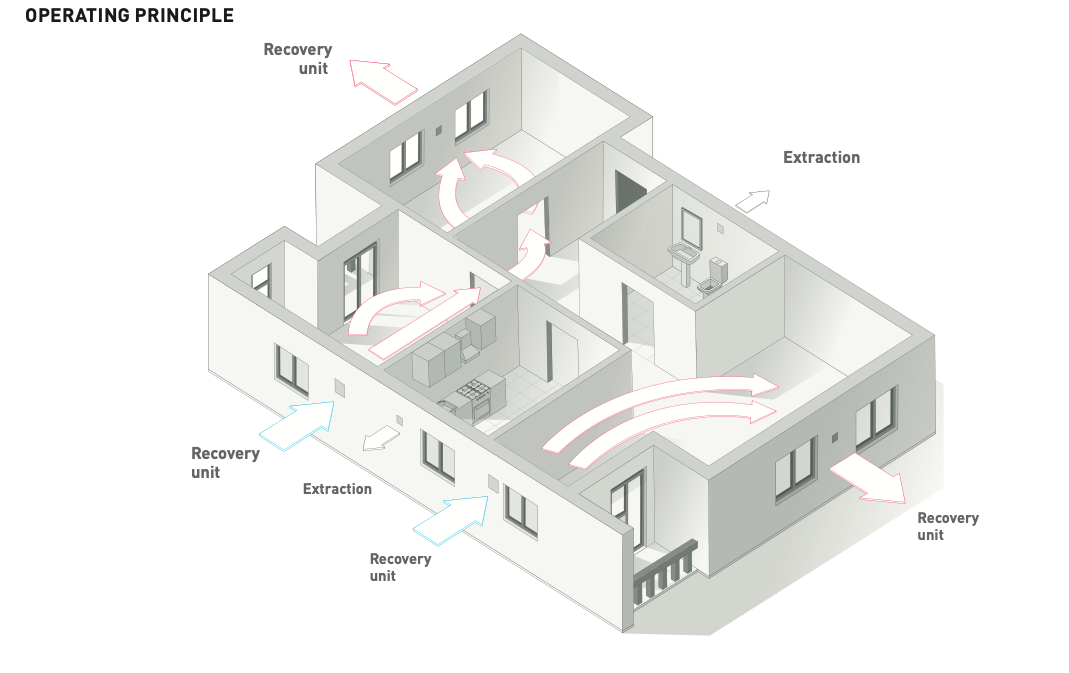

RESPIRO 150 RD N can be synchronized up to 16 units , making it suitable for larger decentralized ventilation concepts across multiple rooms.

The RESPIRO 150 RD N wall-mounted heat recovery unit is perfect for a single room in apartments, houses, offices, hotels and renovation projects where efficient, quiet and decentralized heat recovery is required—without complex ductwork.

Made in Japan.

TECHNICAL INFORMATION:
No defrost control required
70 second cycle

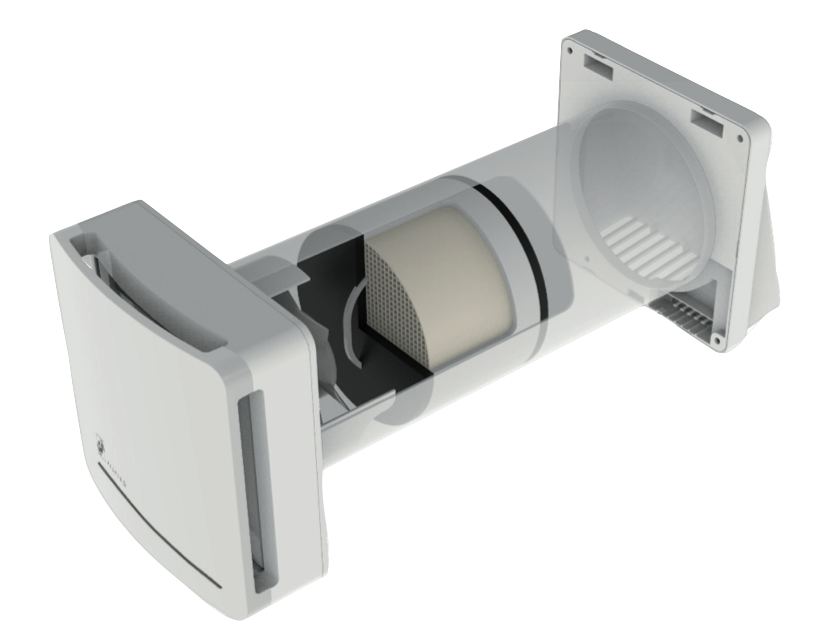

Ceramic heat exchanger
Filter at both ends of heat exchanger
Remote control
Humidity control
3-speed
Connection diameter Ø: 160mm
Functions: Humidity sensor
Power: 5.5/7.5/10W
Airflow rate: 30/45/60 m³/h
Sound level: 13/20/23 dB(A)
Heat recovery efficiency: 70-93 %
Frequency:  50 Hz
Voltage: 220-240 V
Color: White
Material: Ceramic, Plastic, Other
