DSAV-200 C external ventilation grille with insect screen Ø200 mm DEC International
€18.30 Incl. VAT
DEC International DSAV-200 C external ventilation grille Ø200 mm is a high-quality aluminium weather protection grille with an integrated insect screen for supply and exhaust ventilation systems. Its curved external louvres promote efficient airflow while helping prevent rain, insects, and debris from entering ventilation openings.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
The DEC International DSAV-200 C is a high-quality aluminium weather protection grille for Ø200 mm supply and exhaust ventilation systems. Designed for external wall applications, it helps maintain efficient airflow while protecting ventilation openings from rain, insects, and other outdoor contaminants.
The grille features curved external louvres that minimise rain ingress without significantly reducing airflow. An integrated insect screen with 2 mm wire spacing helps prevent insects and small pests from entering the ventilation system, making the grille suitable for both natural and mechanical ventilation.
Manufactured from cast aluminium with a grey finish, the DSAV-200 C combines a clean architectural appearance with dependable outdoor performance. It can be installed by nailing or casting into masonry, making it suitable for new installations as well as replacement projects.
KEY FEATURES
- External louvre grille for Ø200 mm ventilation systems
- High-quality cast aluminium construction

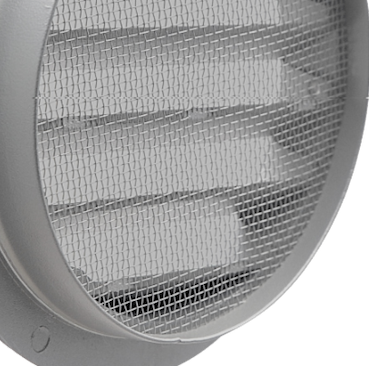

- Integrated stainless steel insect screen (2 mm wire spacing)
- Curved external louvres help reduce rain ingress
- Suitable for supply and exhaust ventilation
- Ideal for natural and mechanical ventilation
- Grey RAL 9006 finish
- Installation by nailing or casting into masonry
- Suitable for residential, commercial, and industrial applications

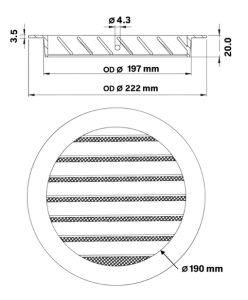

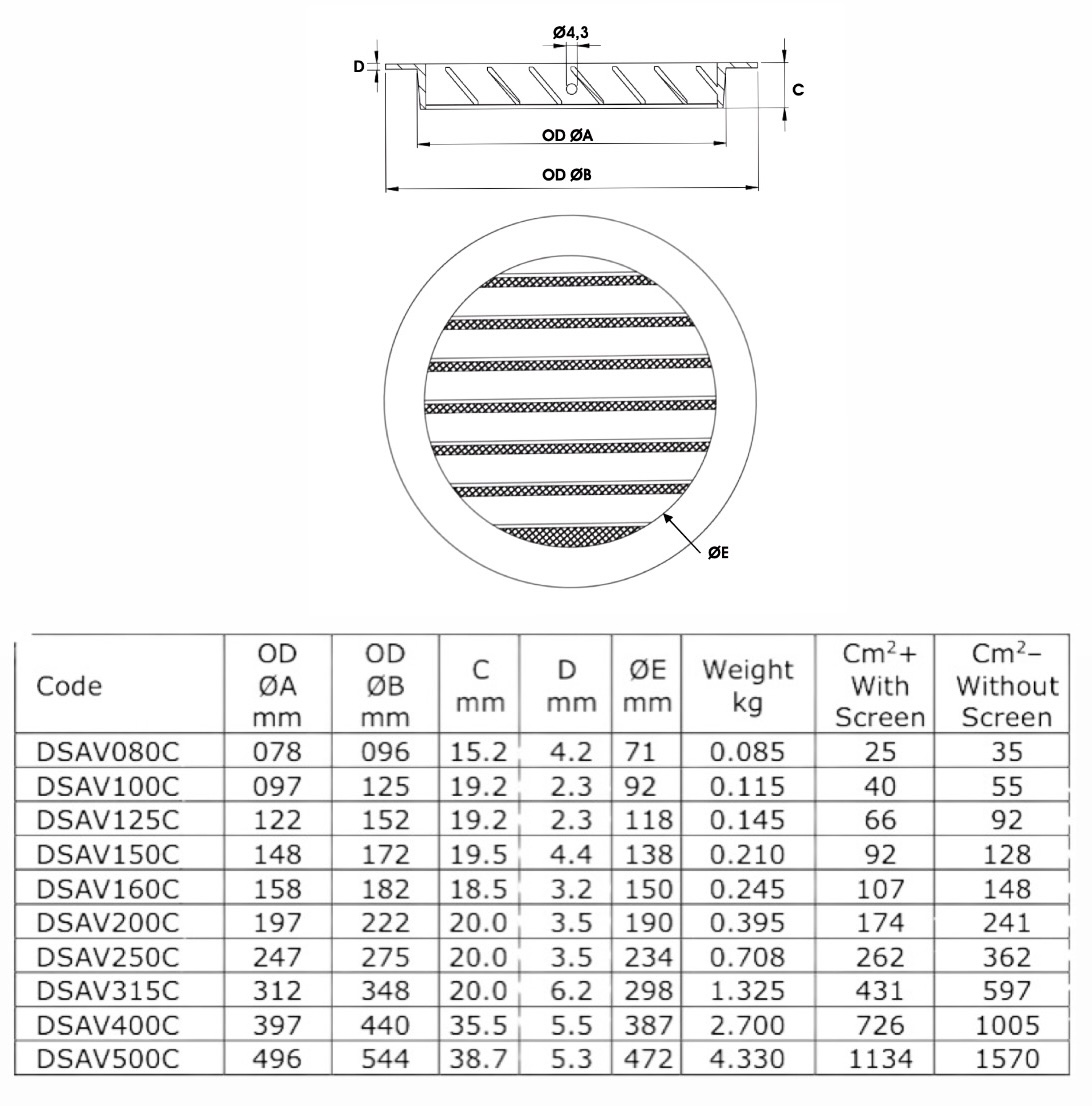

DIMENSIONS
* Every 3 months the screen should be cleaned to prevent clogging.
** The insect screen has to be removed in mechanical ventilation when used for supply air.
| Weight | 0.495 kg |
|---|---|
| Dimensions | 22 × 226 × 226 mm |
| Product type | External ventilation grille |
| Series | DSAV-C |
| Product features | Insect screen |
| Rubber gasket | No |
| Mounting type | Wall mounted |
| Product diameter Ø (mm) | 222 |
| Depth (mm) | 20 |
| Weight (kg) | 0.395 |
| Material | Aluminium, Stainless steel |
| Color | Silver |
| Country of origin | Netherlands |
| Brand | DEC INTERNATIONAL |
| Manufacturer Code | DSAV200C |
| Manufacturer | DEC International |
