SD-100-I INABA DENKO SLIMDUCT SD Lineset Cover 2 m (ivory)
€21.20 Incl. VAT
€17.52 excl. VAT
INABA DENKO SLIMDUCT SD-100-I lineset cover 2m for air conditioners and heat pumps conceals and protects refrigerant pipes, condensate drainage and electrical cables. The ivory decorative lineset cover provides a spacious 100 × 70 mm profile and integrates with the SLIMDUCT SD trunking system for indoor and outdoor HVAC installations.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments

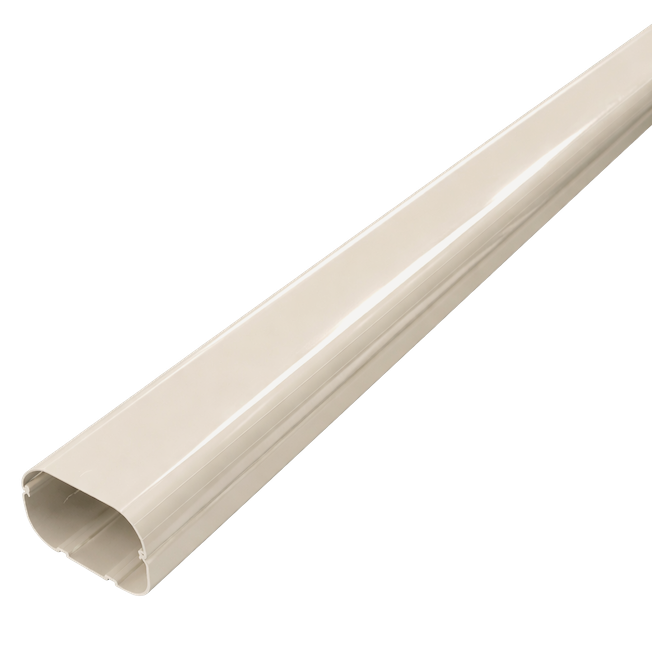

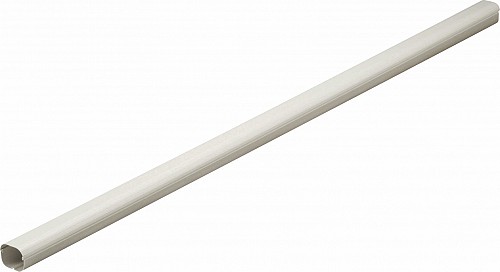

INABA DENKO SLIMDUCT Ivory SD-100-I Lineset Cover 2 m
The INABA DENKO SLIMDUCT SD-100-I straight duct provides a larger 100 × 70 mm profile for routing and covering air conditioning and heat pump service lines. Its 2 m length creates a continuous protective route for insulated refrigerant pipes, condensate drainage and electrical wiring while keeping exposed HVAC services neatly concealed.

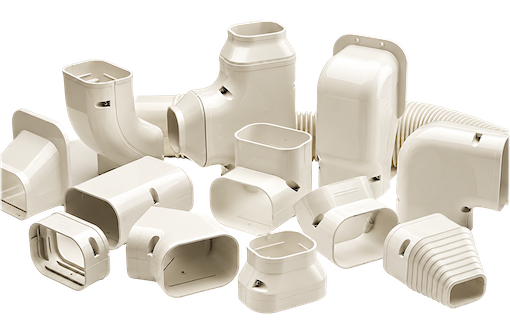

As part of the modular SLIMDUCT SD trunking system, the straight duct can be combined with matching couplers, elbows and other fittings to create a complete pipe covering route.
The ivory decorative lineset cover provides a clean finish for residential and commercial HVAC installations. Its RAL 7044 colour offers a neutral appearance suitable for integrating exposed air conditioning pipework with interior and exterior building surfaces.

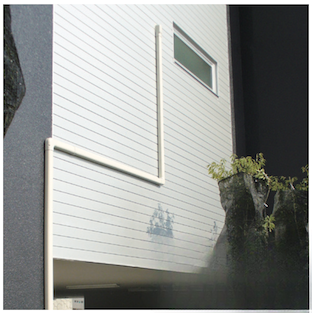

CLEAN AND PROFESSIONAL INSTALLATION
Creates a clean, uniform and professional finish by keeping exposed HVAC lines neatly organised and protected. The enclosed installation improves the overall appearance while helping shield piping and wiring from weather exposure, UV radiation and accidental damage.

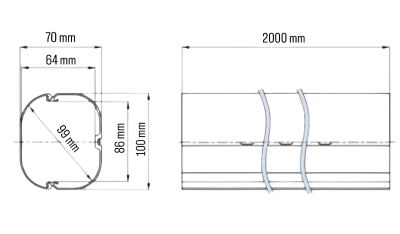

DIMENSIONS
PIPE CAPACITY
SLIMDUCT SD-100 for insulated copper pipes with 10 × 10 mm insulation:
1/4″ × 3/8″ — up to 2 sets
1/4″ × 1/2″ — 1 set
1/4″ × 5/8″ — 1 set
3/8″ × 5/8″ — 1 set
3/8″ × 3/4″ — 1 set
3/8″ × 7/8″ — 1 set

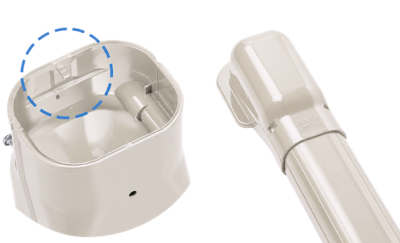

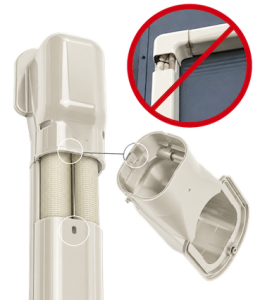

FITTINGS WITH ANTI-SLIP PIN
Selected SLIMDUCT SD fittings feature an anti-slip pin that securely holds the cover in position, helping prevent unwanted movement or sliding after installation.
SLIMDUCT SD VS TAPING – LONG-TERM PROTECTION
SLIMDUCT SD protects refrigerant pipes, insulation, drain hoses and cables from UV exposure, rain and weather conditions, helping the installation remain clean, protected and professional-looking for years.
With taping installation, prolonged exposure to sunlight and weather can cause the wrapping to deteriorate, discolour, crack and peel, leaving the pipework and insulation increasingly exposed.
APPLICATIONS
The SD-100-I decorative lineset cover is suitable for air conditioning and heat pump installations requiring more internal space for insulated refrigerant pipework and associated services. It provides a protective and organised route for insulated copper pipes, condensate drain lines, electrical wiring and other compatible HVAC services.
Its 2 m straight duct format is particularly practical for longer pipe runs, while matching SLIMDUCT SD-100 fittings allow the route to continue around corners and changes of direction. Together, the components form a modular decorative trunking system for residential and commercial HVAC installations.
5 COLOUR VARIETIES
- White RAL 9003
- Ivory RAL 7044
- Anthracite Grey RAL 7016
- Brown RAL 6014
- Black RAL 9011
MORE ABOUT SLIMDUCT SD TRUNKING SYSTEM
SLIMDUCT SD Trunking System Catalogue
