TD-250/100 SILENT T Soler & Palau quiet mixed flow in-line duct fan with timer Ø100mm

– Soler & Palau TD-250/100 SILENT T ultra-quiet Ø100 mm mixed-flow duct fan with adjustable timer within 1 – 30 minutes and sound-absorbing insulation.

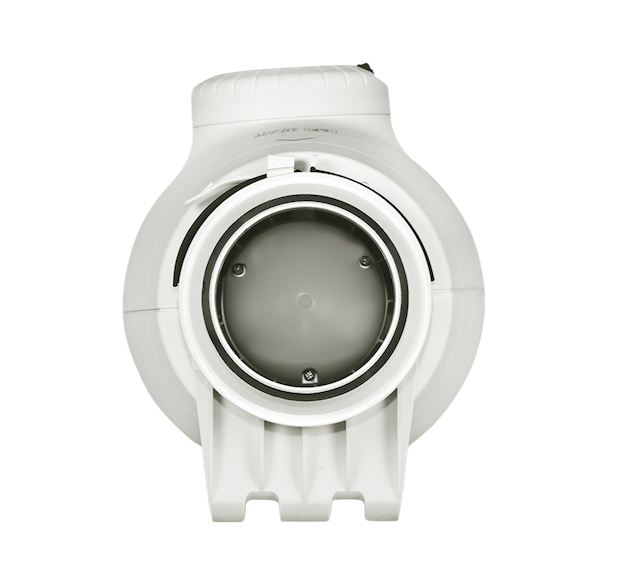

– Includes reduction adapters – the fan body connection diameter is Ø125 mm, while the included adapters allow it to fit Ø100 mm duct systems.

– 1-speed motor, not suitable for speed control.

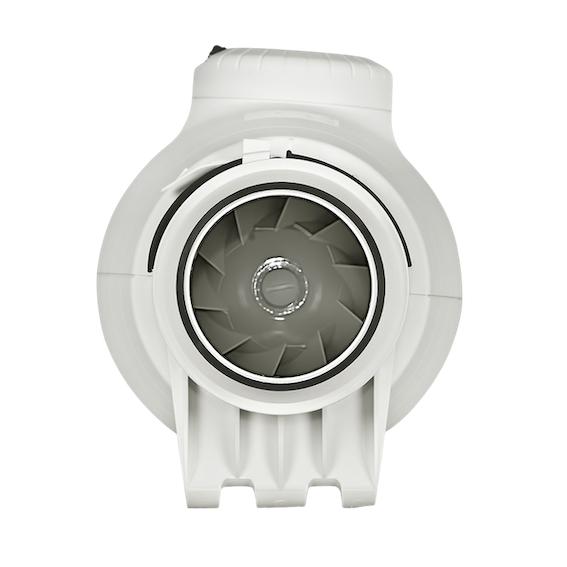

– Fan feature a specially designed internal skin that directs sound waves at the correct angle for them to be absorbed by the acoustic material.

– Thanks to its sound-absorbing insulation, ensures an exceptionally low noise level up to 25 dB(A).

– Made from durable polypropylene plastic, ensuring longevity and reliability — a trusted choice for residential and commercial ventilation. Features an ABS impeller for optimal airflow and improved ventilation efficiency.

– Includes rubber gaskets on the inlet and outlet to simplify installation and absorb vibrations.

– Comes with a mounting bracket for wall or ceiling installation.

– Protection class II and IP44 ensure safe use even in humid environments.

– Motors are class B, with ball bearings and safety thermal overload protection.

– Easy to install and adaptable, providing maximum user convenience.

– The detachable body allows maintenance without removing ducts. The terminal box can be rotated 360º for easier power cable connection.

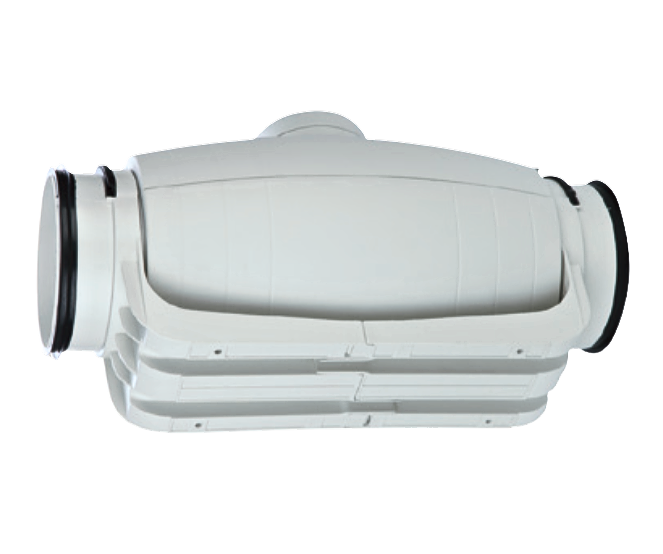

– The unique bracket design enables removal of the motor and impeller assembly without dismantling adjacent ductwork.

– TD-250/100 SILENT is energy-efficient and ideal for effective air circulation in bathrooms, living spaces, or workplaces, delivering airflow up to 250 m³/h.

– Low profile is ideal for installations where space is very limited, especially in ceiling voids.

– Soler & Palau duct fans offer solutions for ventilation needs, especially in workplaces where low noise levels are required.

– Made in Spain.
