TD EVO-160 Soler & Palau mixed flow in-line duct fan Ø160mm
€191.55
Compact and ultra-silent in-line duct fan ideal for residential and commercial ventilation systems. The TD Evo series offers energy-efficient, high-performance airflow with easy installation and maintenance.
The low profile of the TD-EVO fans makes them the most effective solution for installations where the space of installation is limited such as false ceilings
Range of low profile in-line mixed-flow fans for circular ducts.
The range comprises seven diameters and covers a flow range from 210 to 1840 m3/h.

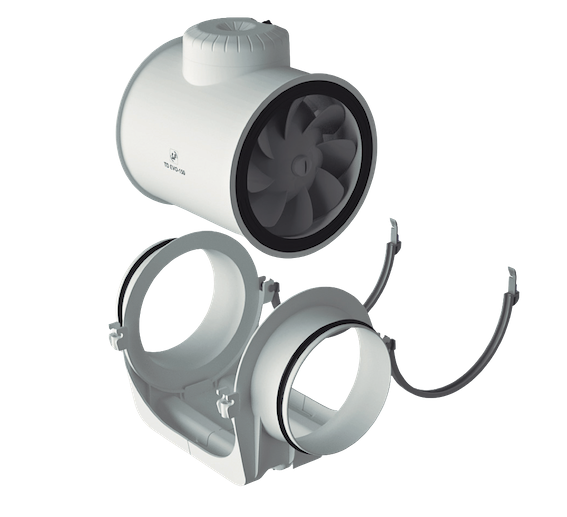

The unique design of the support bracket allows the motor and impeller assembly to be fitted or removed without dismantling the adjacent ducting.
Low profile compact casing manufactured in tough reinforced plastic.
Optimised design of the impeller, guide vane and outlet diffuser, to increase performance and lower the sound level.

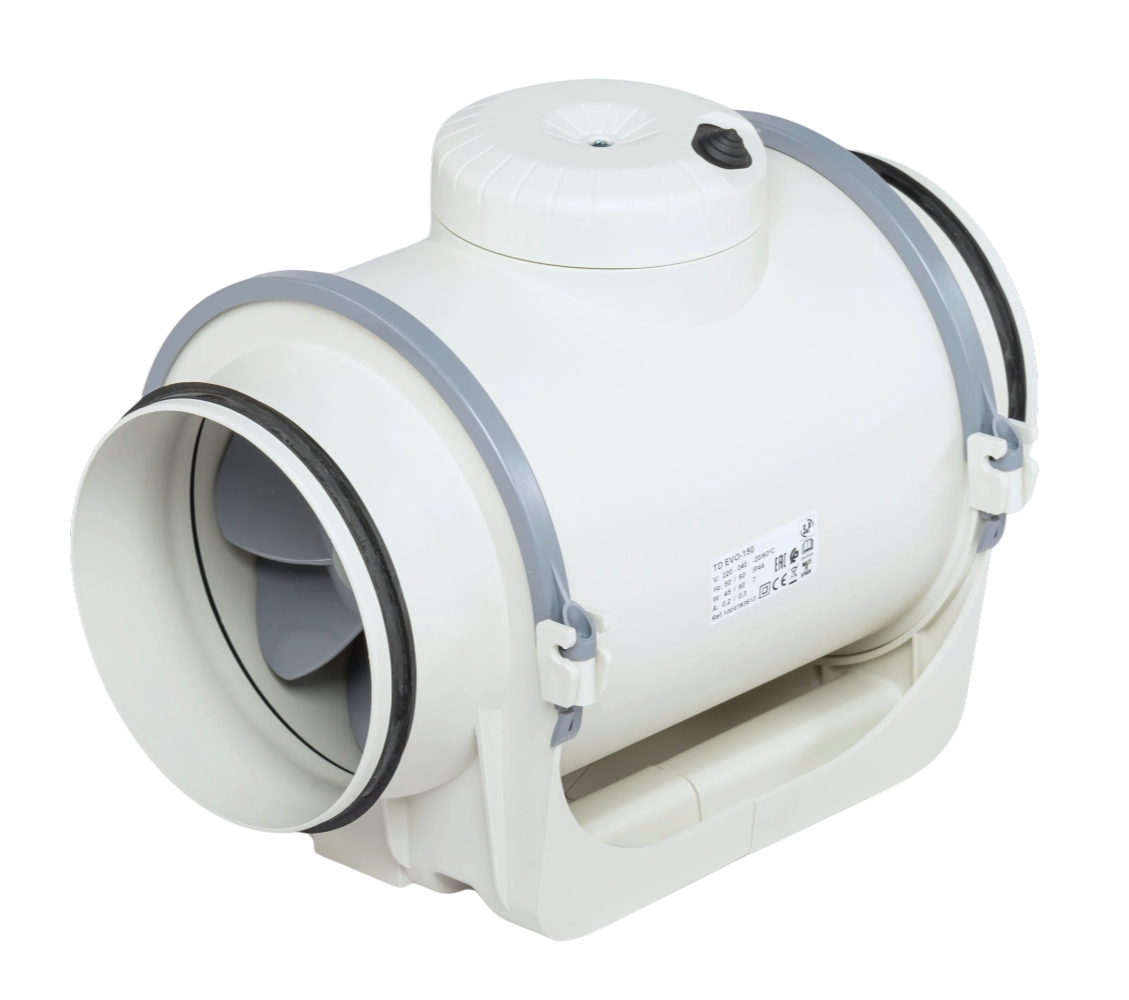

Airtight construction with doubleinjection sealing between the main body and he support bracket to avoid air leaks. Rubber gaskets on the flanges to improve airtightness with the ducts.
Silent-block between the motor and the guide vane to reduce the motor’s vibrations and lower the sound level of the installation, even in terms of speed regulation.
Technical information:
Fitted with a 3-speed single-phase AC motor:
Diameter(mm): 160
Airflow capacity (m³/h): 440/500/560
Sound level (dB(A)): 39/42/45
Power consumption (W): 33/37/45
Temperature range (°C): -20 to + 60
Functions: Silent-block
Voltage (V): 220-240
Frequency (Hz): 50-60
IP rating: IP 44
Motor also speed controllable by voltage in high speed
Thermal protection with manual reset
Motor Class F
| Weight | 3.7 kg |
|---|---|

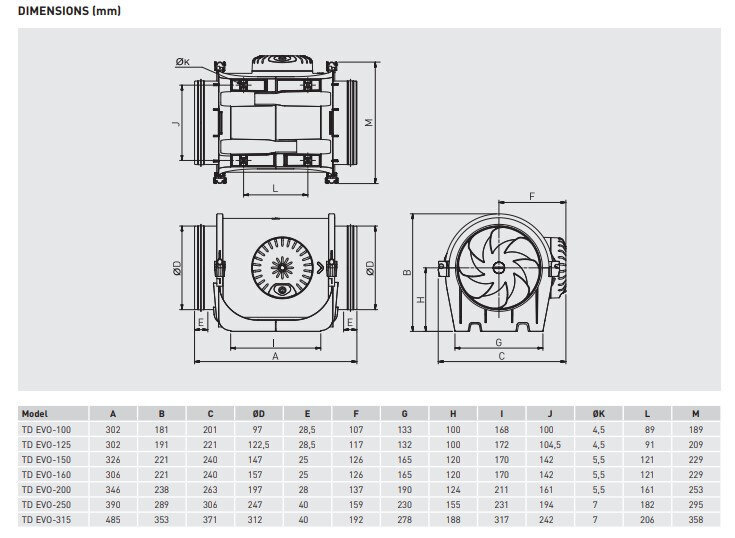

| Dimensions | 370 × 279 × 254 mm |
| Product type |
In-line duct fan |
| Series |
TD-EVO |
| Functions |
Base model |
| Connection diameter Ø (mm) |
160 |
| Number of Speeds |
3 speeds |
| Speed control |
Single phase fan speed controler |
| Airflow (m³/h) |
440/500/560 |
| Sound level (dB(A)) |
39/42/45 |
| Power (W) |
33/37/45 |
| Temperature range (°C) |
-20 / +60 |
| Frequency (Hz) |
50-60 |
| IP rating |
IP44 |
| Motor insulation class |
Class F |
| Thermal overload protection |
Yes |
| Motor type |
AC motor |
| Rubber gasket |
Yes |
| Weight (kg) |
3 |
| Color |
White |
| Material |
Plastic |
| Country of origin |
Spain |
| Brand |
Soler & Palau |
