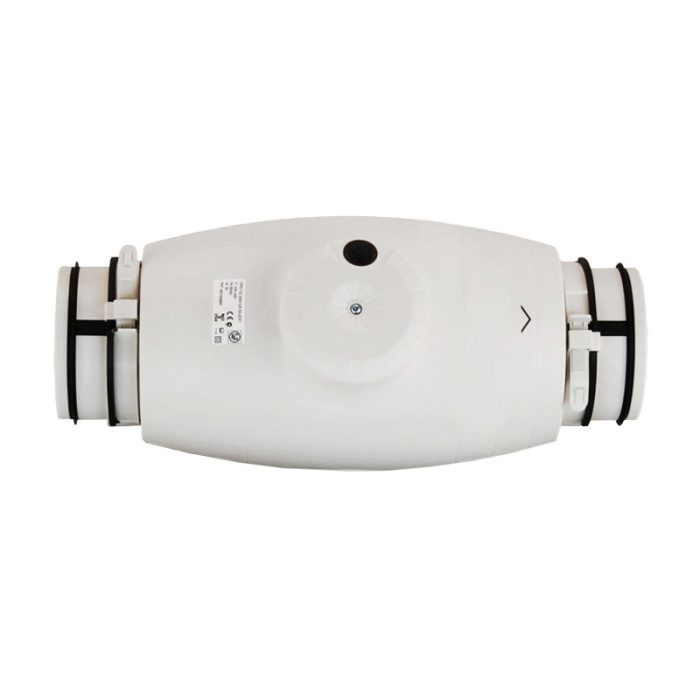

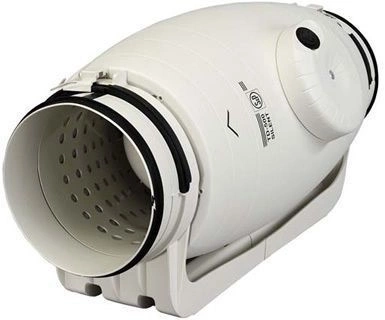

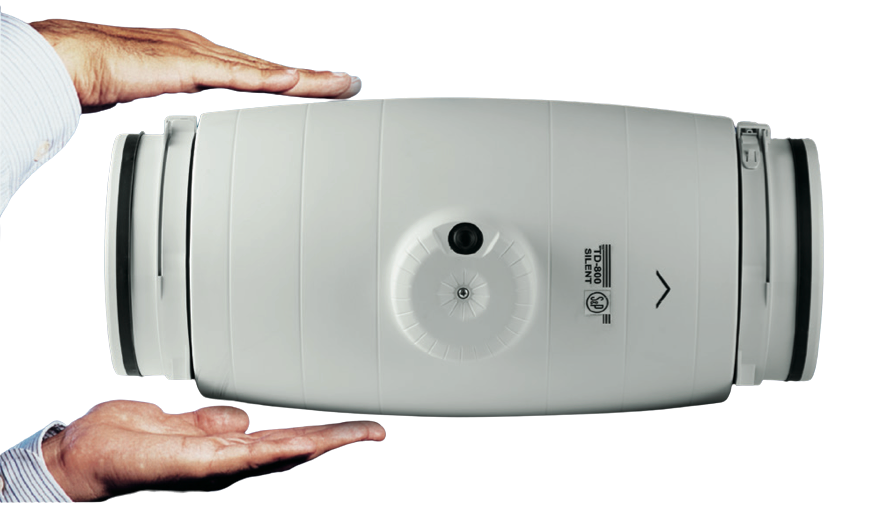

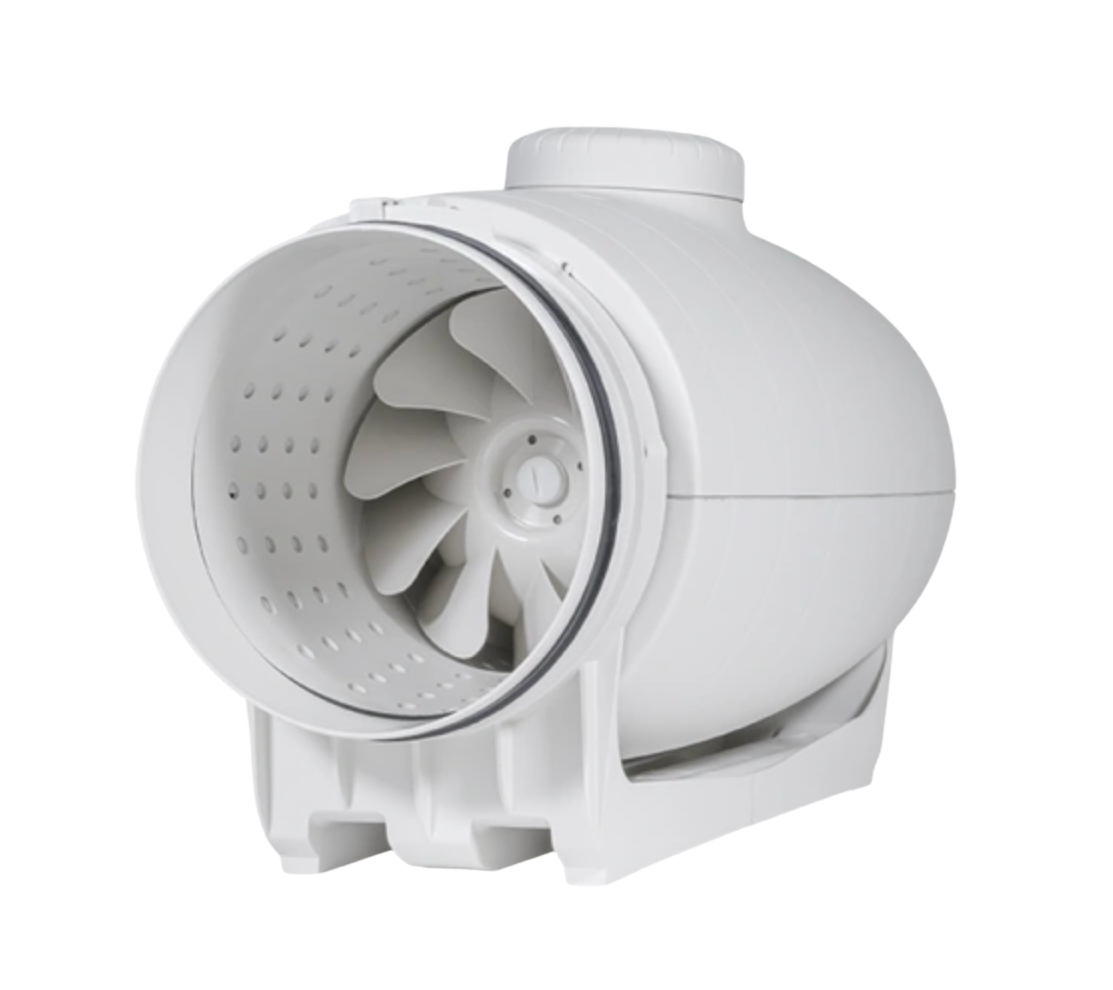

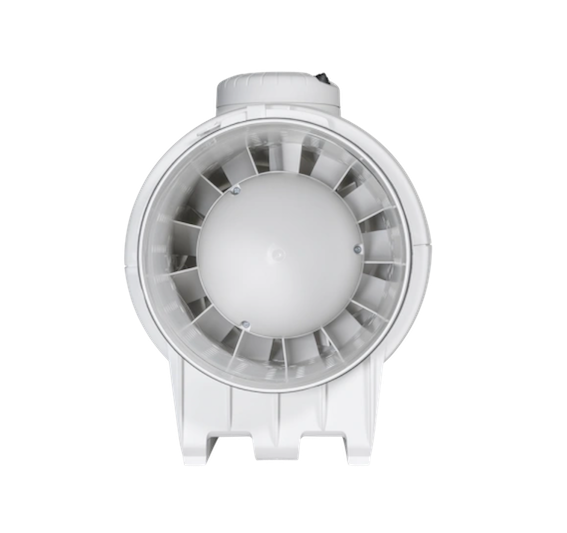

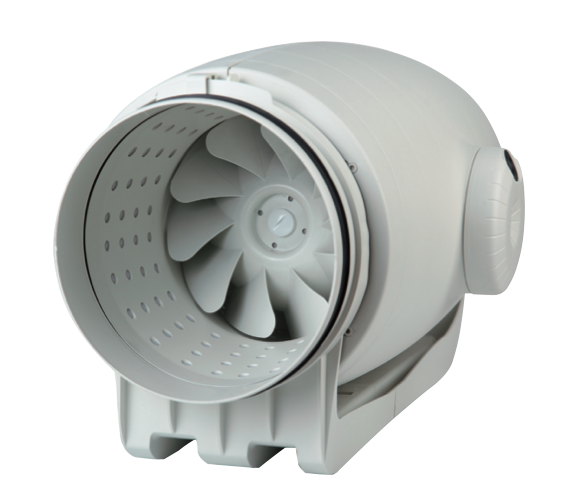

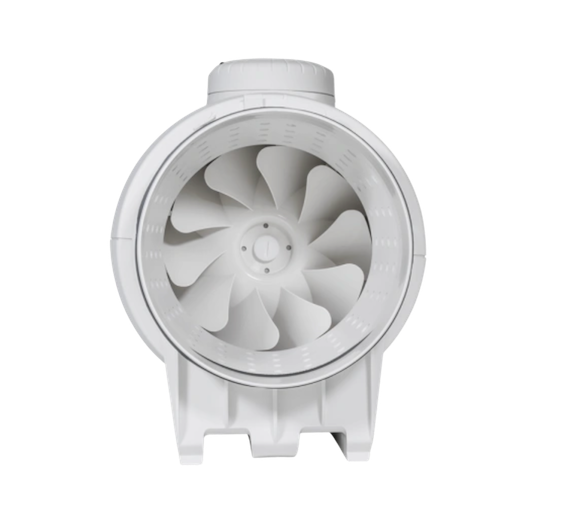

TD-800/200 SILENT T 3V Soler & Palau mixed flow in-line duct fan with timer Ø200mm

– The Soler & Palau TD-800/200 SILENT T 3V ultra-quiet mixed flow in-line duct fan with adjustable speed and airflow up to 910 m³/h, energy efficient and with smart control for optimal air management.

– Featuring an integrated adjustable timer (1–30 minutes), the TD-800/200 SILENT T 3V continues running after the power is switched off, maintaining air quality and preventing moisture build-up — ideal for bathrooms, kitchens, and HVAC systems requiring timed airflow control.

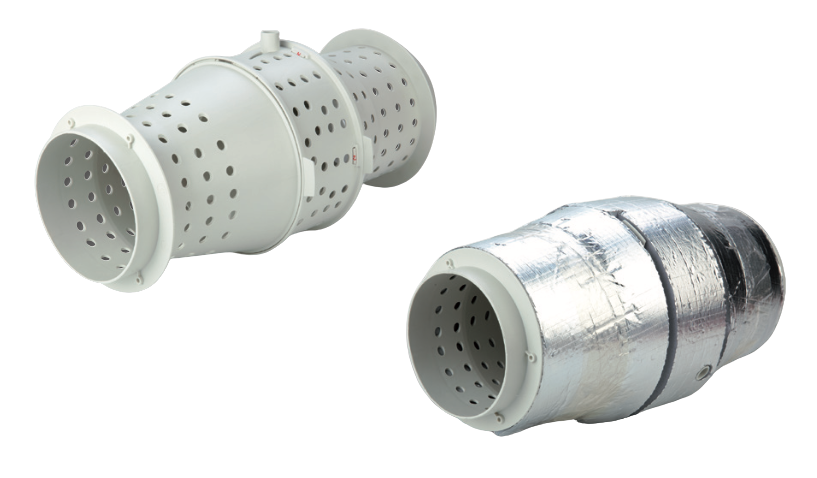

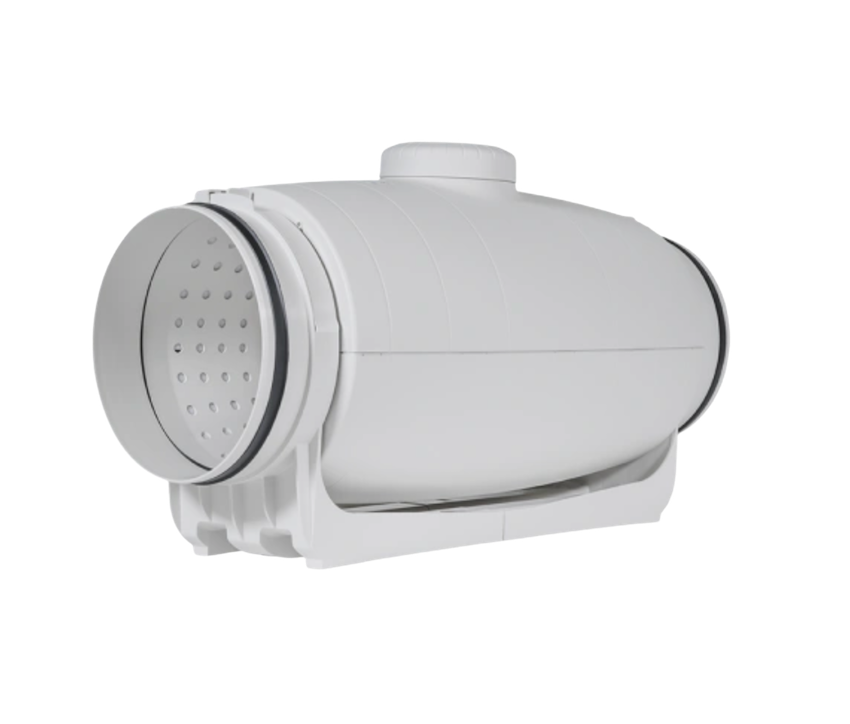

– Manufactured from high-grade, impact-resistant plastic, this inline duct fan incorporates a specially engineered internal skin that guides sound waves to the correct angle for absorption by the sound-insulating material. The result is a low noise level between 22 and 28 dB(A), making it one of the quietest mixed-flow fans available.

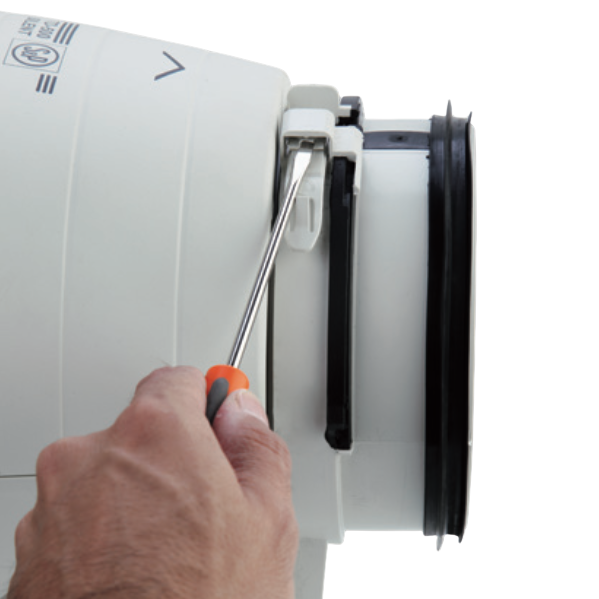

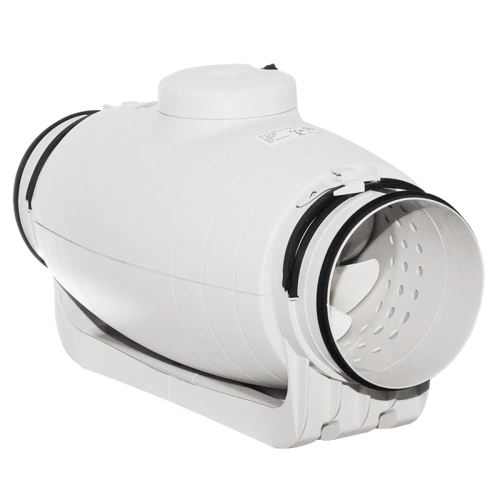

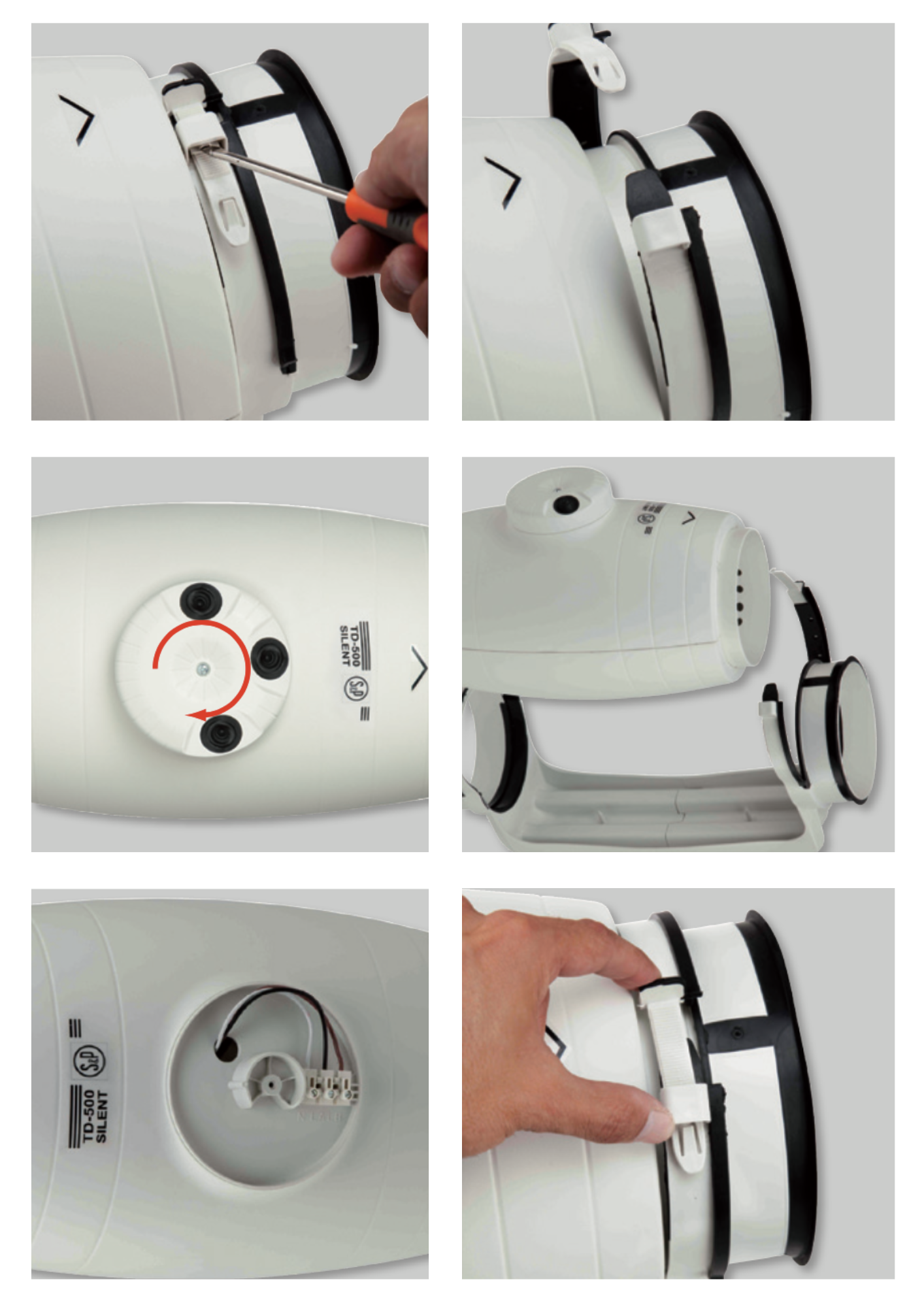

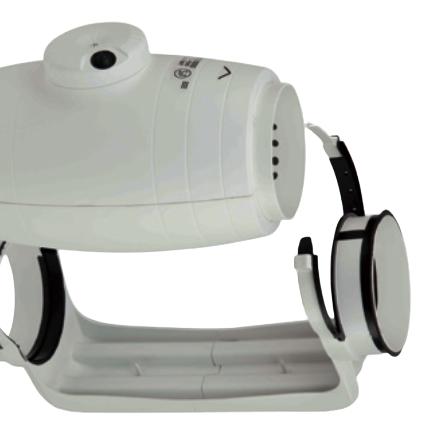

– Include rubber gaskets on both inlet and outlet to minimize vibration, a removable fan body for easy maintenance without dismantling ducts, and a 360° rotatable junction box for flexible installation.

– The 3-speed motor (230 V / 50 Hz) is speed-controllable with 3-speed switches COM-3 and INTER 4P and single phase speed controller RMB-1,5 and REB-1.

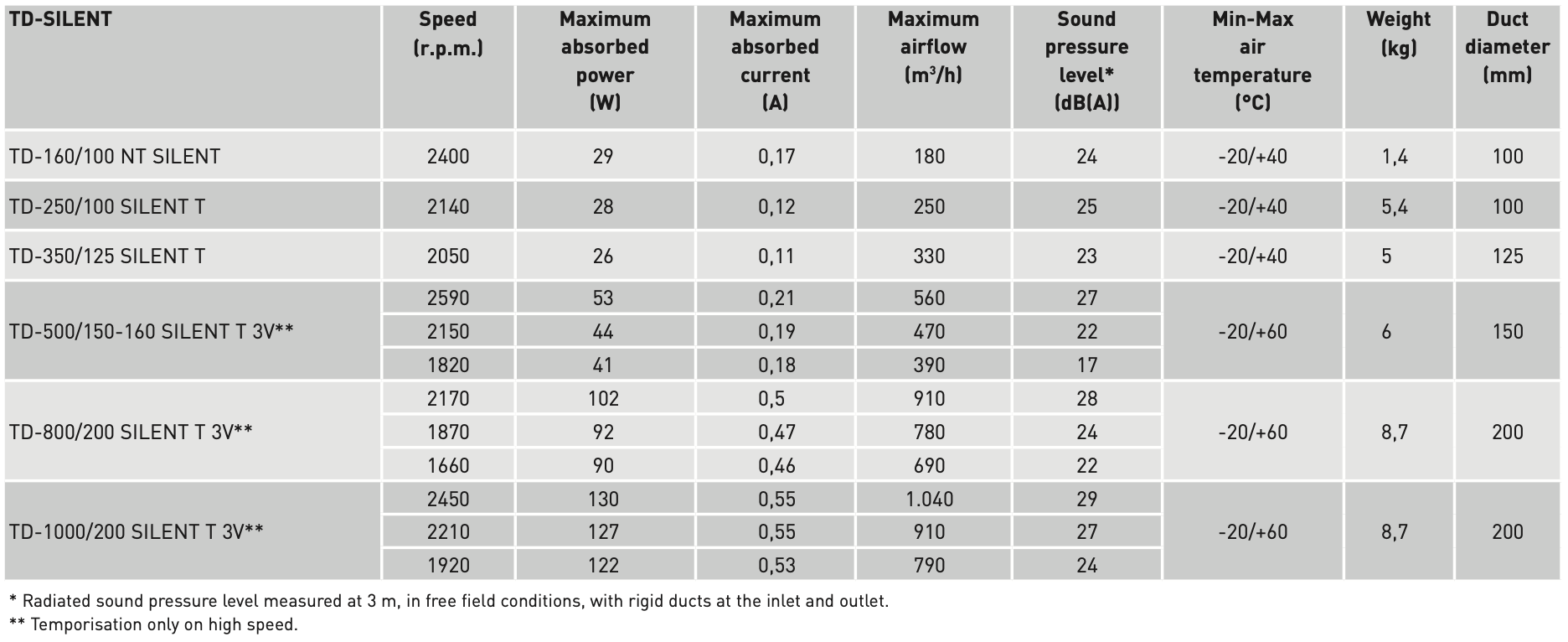

– Speed 1660/1870/2170 r.p.m. and maximum absorbed current 0,46/0,47/0,5 A.

– Ball bearing equipped, and protected against overheating with a thermal overload safety switch.

– Rated IP44, it ensures durability and safety even under continuous operation.

– This fan is certified by the Noise Abatement Society for its exceptionally quiet design and long service life, offering reliable performance in environments where people work or live for extended hours.

– Designed for homes, offices, restaurants, and commercial spaces that demand powerful yet silent ventilation.

– Manufactured in Spain.
