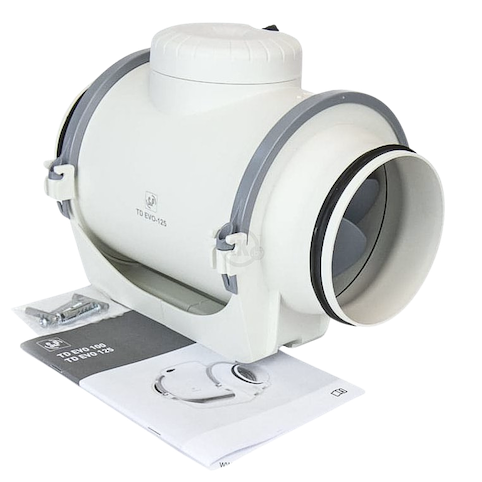

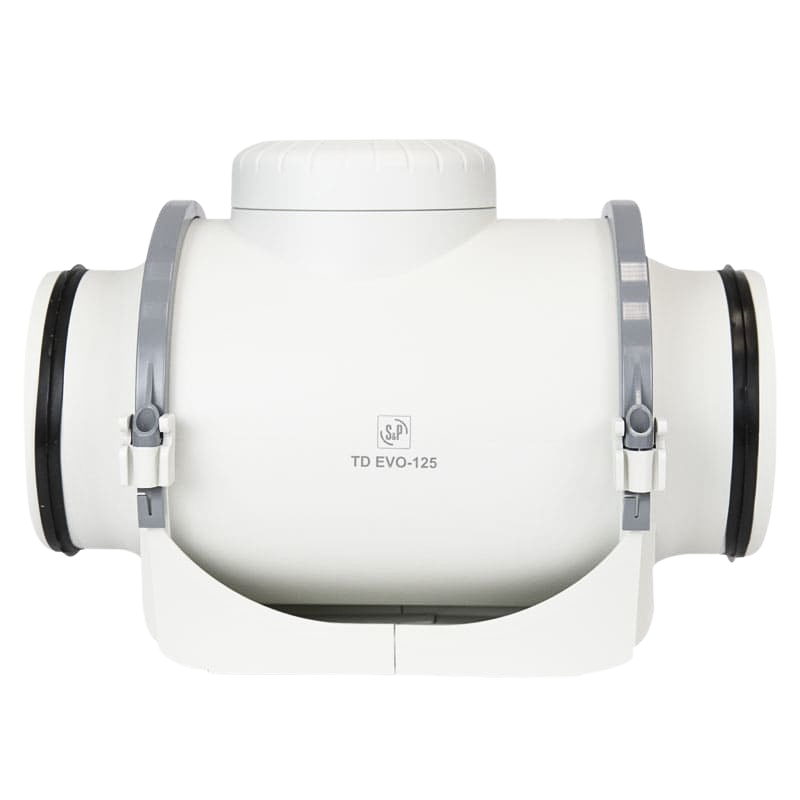

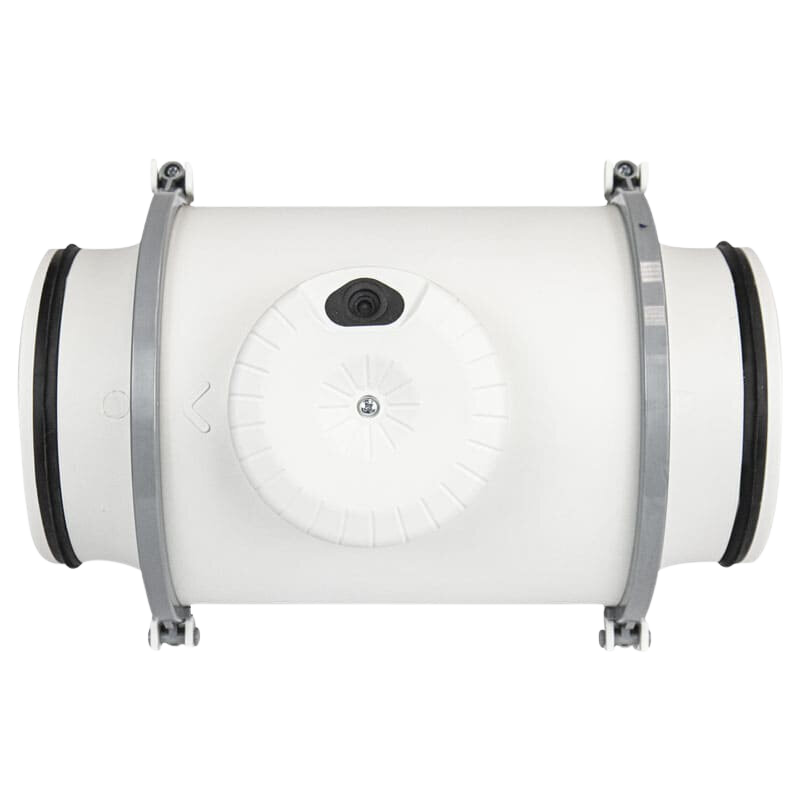

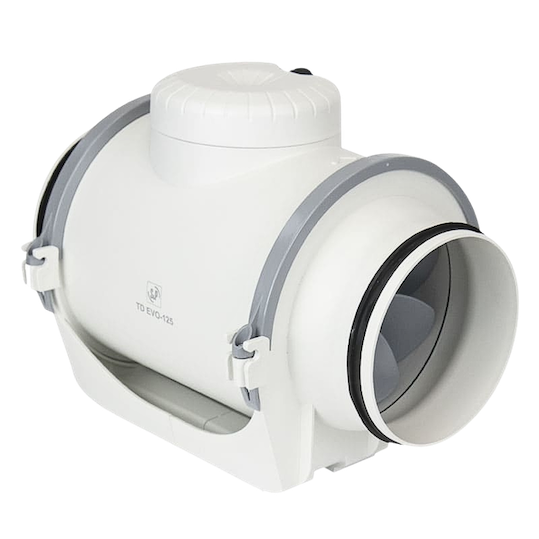

TD EVO-125 T in-line mixed flow duct fan with timer Ø125mm
€157.31
The Soler & Palau TD EVO-125 T is a low profile mixed-flow in-line duct fan equipped with an adjustable run-on timer, designed for ventilation systems using 125 mm round ducts. Its streamlined casing and efficient impeller ensure strong air movement while keeping noise levels low, making it well suited for bathrooms, kitchens, and other residential or commercial spaces with limited installation room. The fan features variable speed control, IP44 protection, airflow of up to 310 m³/h, and sound levels of up to 37 dB(A).
Range of low profile in-line mixed-flow fans for circular ducts.
The range comprises seven diameters and covers a flow range from 210 to 1840 m3/h.

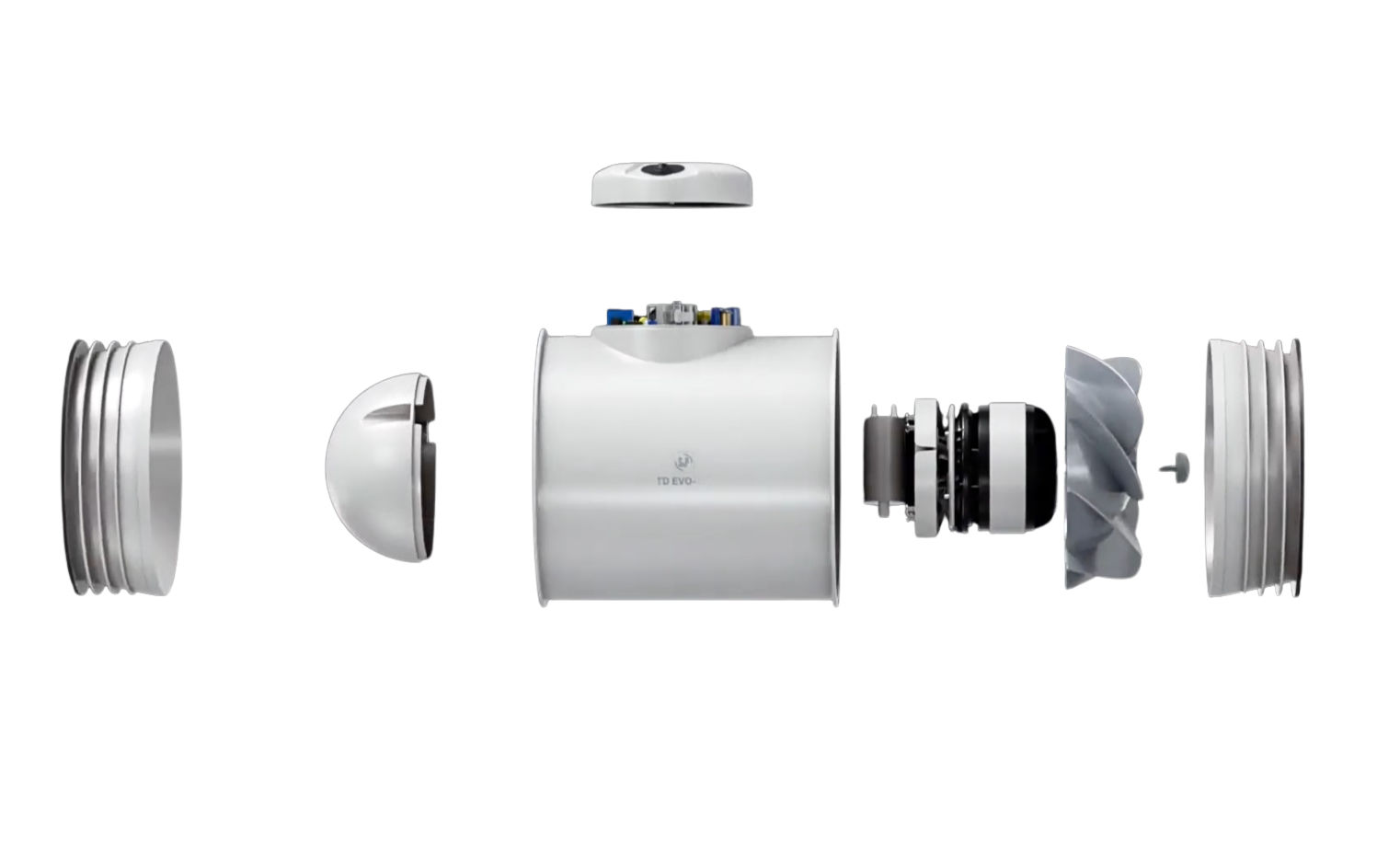

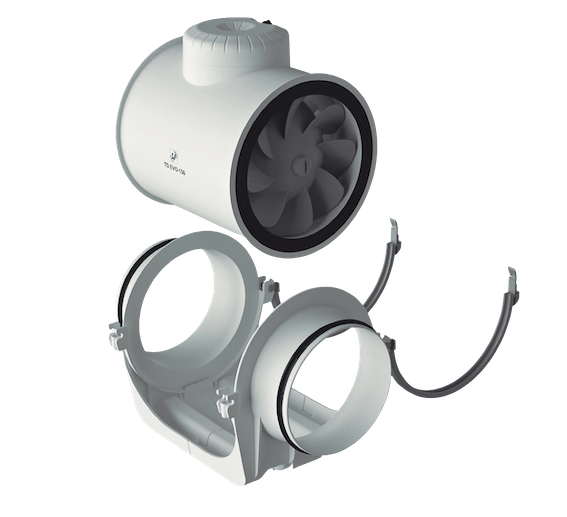

The unique design of the support bracket allows the motor and impeller assembly to be fitted or removed without dismantling the adjacent ducting.
Low profile compact casing manufactured in tough reinforced plastic.
Optimised design of the impeller, guide vane and outlet diffuser, to increase performance and lower the sound level.
Airtight construction with doubleinjection sealing between the main body and he support bracket to avoid air leaks. Rubber gaskets on the flanges to improve airtightness with the ducts.
Silent-block between the motor and the guide vane to reduce the motor’s vibrations and lower the sound level of the installation, even in terms of speed regulation.
Technical information:
Timer (min): 1-30
Fitted with a 3-speed single-phase AC motor:
Diameter(mm): 125

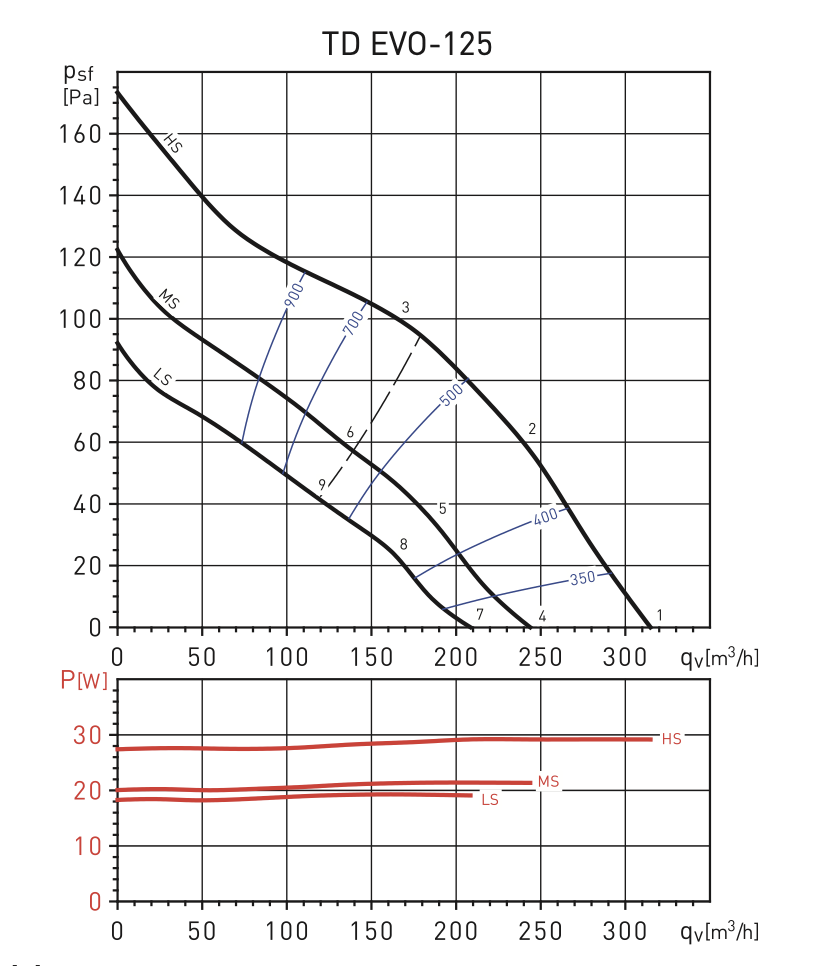

Airflow capacity (m³/h): 210/240/310
Sound level (dB(A)): 37
Power consumption (W): 19/21/29
Temperature range (°C): -20 to + 60
Functions: Silent-block
Voltage (V): 220-240
Frequency (Hz): 50-60
IP rating: IP 44
Motor also speed controllable by voltage in high speed
Thermal protection with manual reset
Motor Class F
| Weight | 2.1 kg |
|---|---|

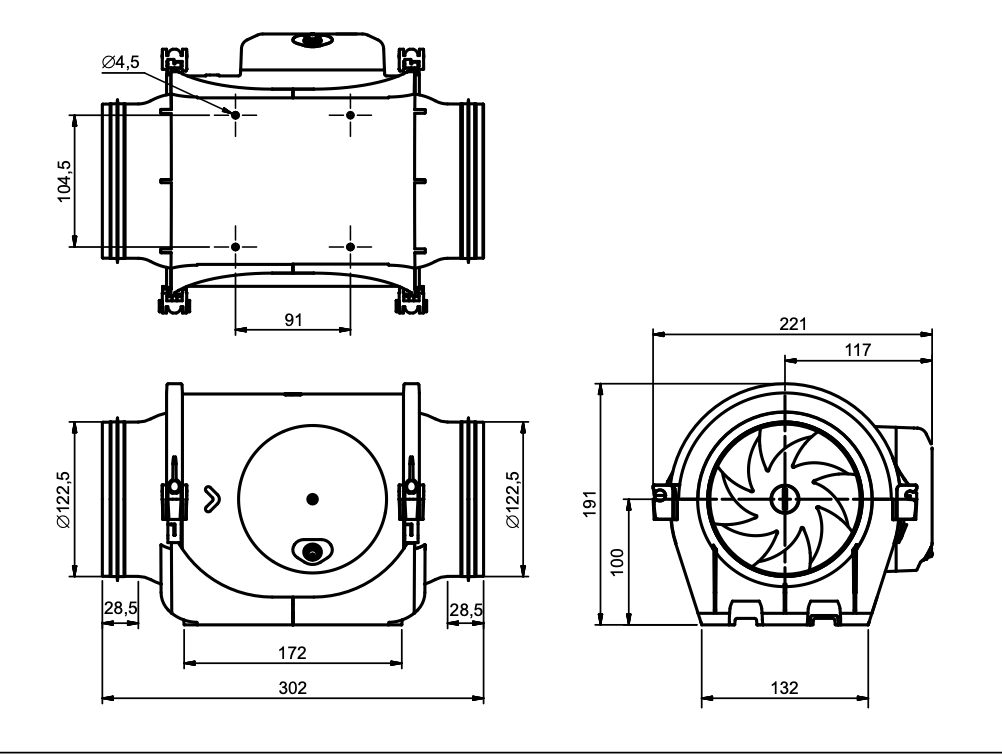

| Dimensions | 330 × 230 × 244 mm |
| Product type |
In-line duct fan |
| Series |
TD-EVO |
| Functions |
Timer |
| Connection diameter Ø (mm) |
125 |
| Speed control |
Not suitable for speed control |
| Airflow (m³/h) |
210/240/310 |
| Sound level (dB(A)) |
28/31/37 |
| Temperature range (°C) |
-20 / +60 |
| Voltage (V) |
220-240 |
| Frequency (Hz) |
50-60 |
| IP rating |
IP44 |
| Thermal overload protection |
Yes |
| Motor type |
AC motor |
| Rubber gasket |
Yes |
| Weight (kg) |
1.8 |
| Color |
White |
| Material |
Plastic |
| Country of origin |
Spain |
| Brand |
Soler & Palau |
