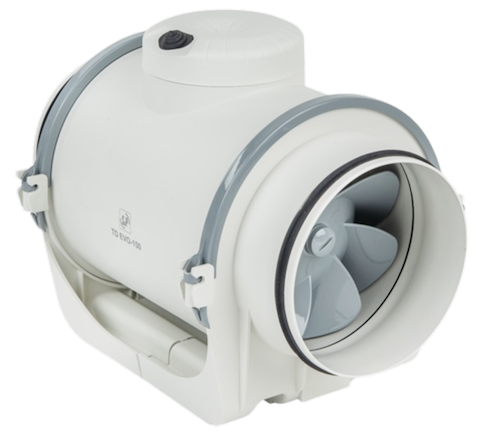

TD EVO-150 T mixed flow in-line duct fan with timer Ø150mm
€206.95
The Soler & Palau TD EVO-150 T is a high-capacity mixed-flow in-line duct fan with an integrated adjustable timer, designed for ventilation systems with 150 mm circular ducts. Its compact housing and efficient aerodynamic design allow it to deliver strong airflow while maintaining controlled noise levels. This model is well suited for residential and commercial ventilation applications where delayed shutdown is required after operation. The fan includes variable speed control, IP44 protection, provides airflow of up to 560 m³/h, and operates at sound levels of up to 45 dB(A).
Range of low profile in-line mixed-flow fans for circular ducts.
The range comprises seven diameters and covers a flow range from 210 to 1840 m3/h.

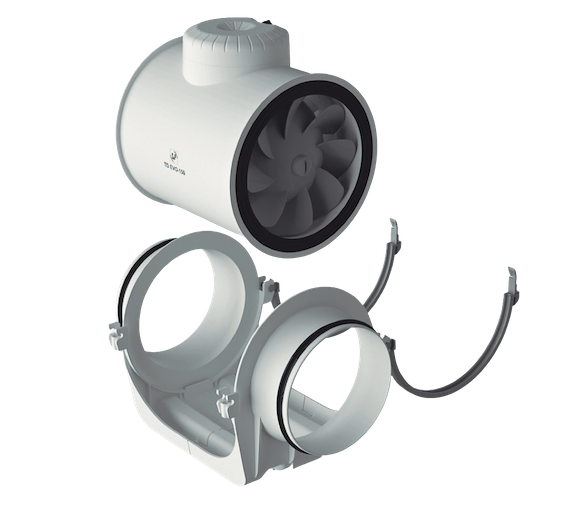

The unique design of the support bracket allows the motor and impeller assembly to be fitted or removed without dismantling the adjacent ducting.

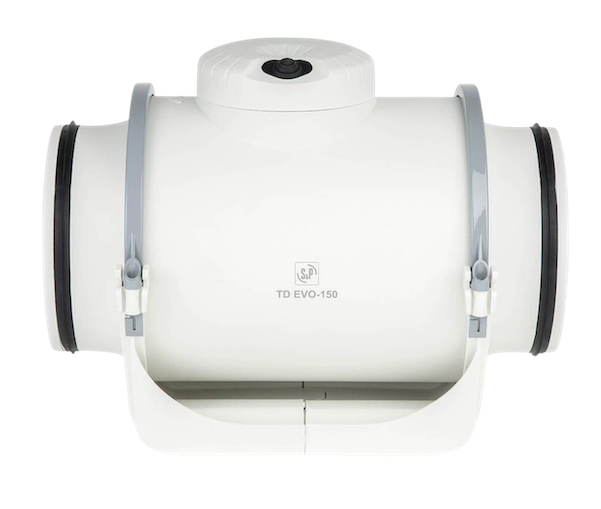

Low profile compact casing manufactured in tough reinforced plastic.
Optimised design of the impeller, guide vane and outlet diffuser, to increase performance and lower the sound level.

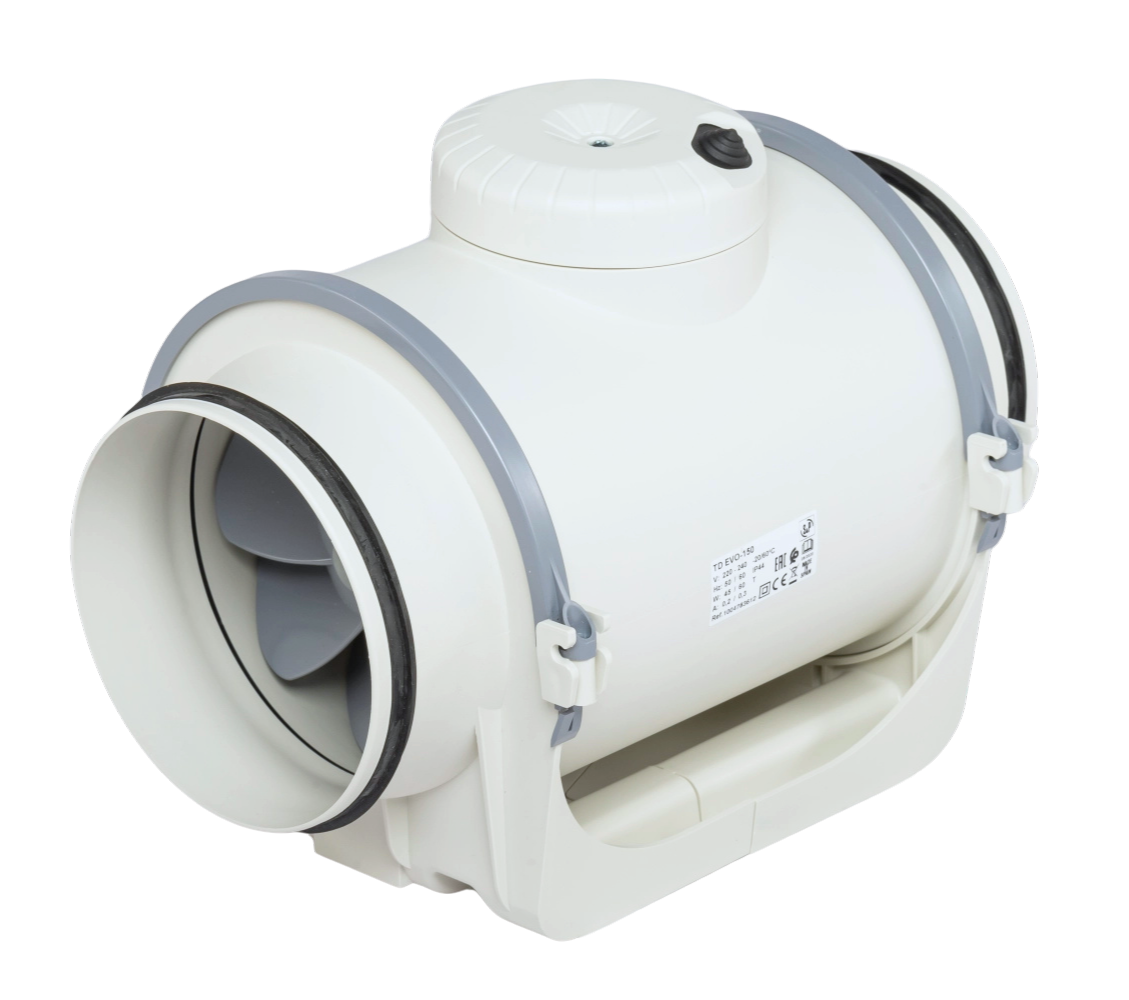

Airtight construction with doubleinjection sealing between the main body and he support bracket to avoid air leaks. Rubber gaskets on the flanges to improve airtightness with the ducts.
Silent-block between the motor and the guide vane to reduce the motor’s vibrations and lower the sound level of the installation, even in terms of speed regulation.
Technical information:
Timer (min): 1-30

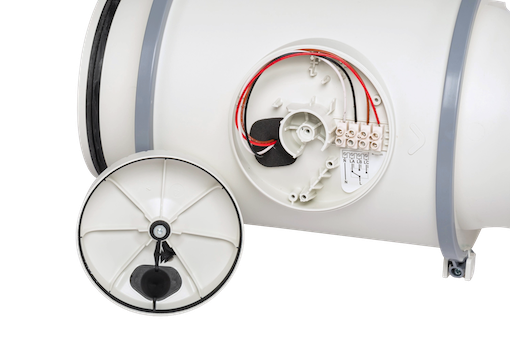

Fitted with a 3-speed single-phase AC motor:
Diameter(mm): 150

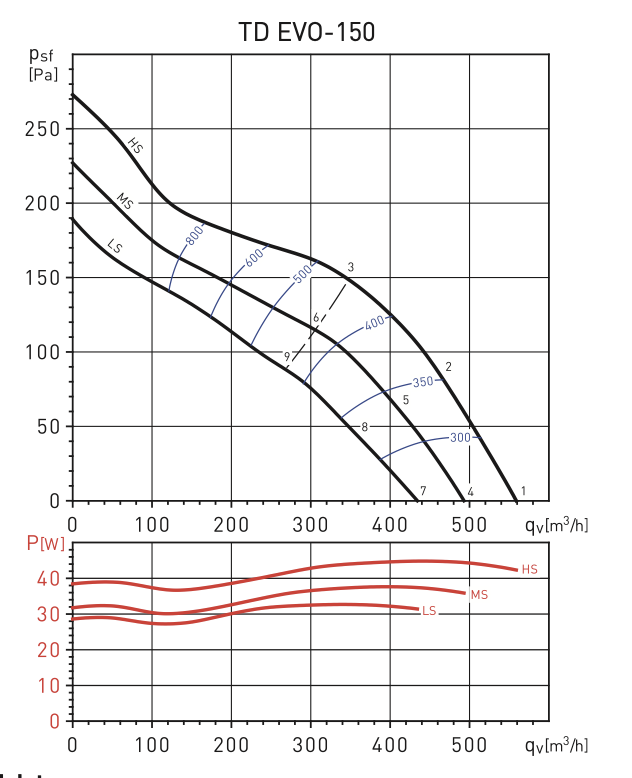

Airflow capacity (m³/h): 430/490/560
Sound level (dB(A)): 32/44/45
Power consumption (W): 33/38/45
Temperature range (°C): -20 to + 60
Functions: Silent-block
Voltage (V): 220-240
Frequency (Hz): 50-60
IP rating: IP 44
Motor also speed controllable by voltage in high speed
Thermal protection with manual reset
Motor Class F
| Weight | 37 kg |
|---|---|

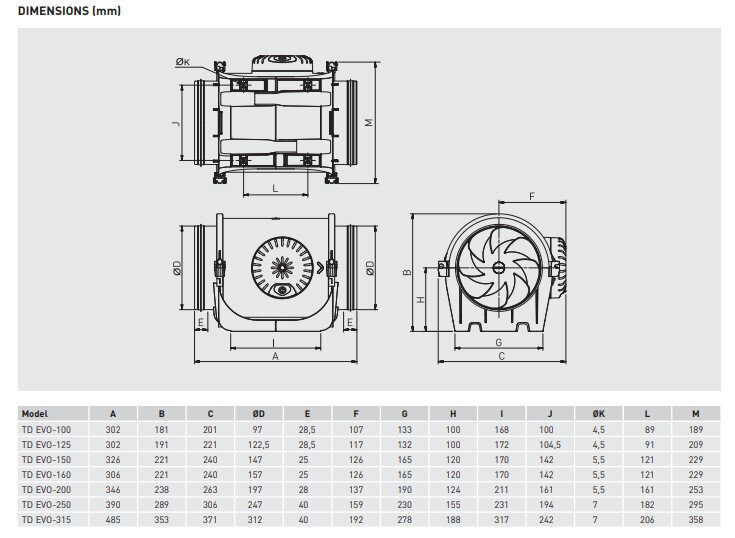

| Dimensions | 370 × 279 × 254 mm |
| Color |
White |
| Material |
Plastic |
| Product type |
In-line duct fan |
| Series |
TD-EVO |
| Functions |
Timer |
| Connection diameter Ø (mm) |
150 |
| Speed control |
Not suitable for speed control |
| Voltage (V) |
220-240 |
| IP rating |
IP44 |
| Weight (kg) |
3 |
| Country of origin |
Spain |
| Brand |
Soler & Palau |
