HCM-150 N Soler & Palau wall or window extractor fan
€111.95
Soler & Palau HCM-150 N window and wall extractor fan for direct exhaust ventilation in residential and commercial spaces. Delivers airflow up to 220 m³/h to efficiently remove humidity, odours and excess heat while improving indoor air quality. Features an automatic external shutter to help prevent backdraughts and ensure efficient ventilation.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
– The HCM-150 N wall or window mounted fan is suitable for domestic kitchens, bathrooms, offices, waiting rooms and restaurants. It features powerful air flow performance and quiet operation.

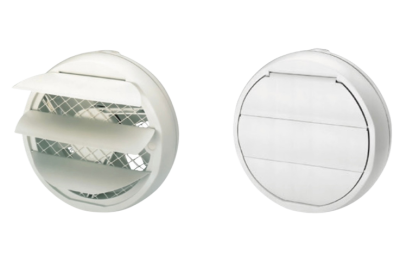

– External shutter – features an automatic overpressure shutter that opens during operation and closes when the fan is off, preventing backdrafts.
– Safety guards – guards fitted at the inlet and outlet of the fan to prevent the entry of any foreign objects.

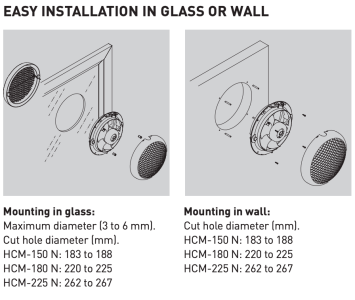

– Easy installation in glass or wall – suitable for mounting on glass (3–6 mm thickness) or walls, with specific cut-out diameters for each model. Optional wall rods and sleeves available for installations in walls of varying thicknesses (25 to 300 mm).
– Optional weather cap – has been designed for skylight installation. It provides added protection against both wind and rain when the fan is mounted in demanding areas such as high-rise housing, seaside and exposed positions.
– It comes with bird wire mesh and is colour matched to the fan.
– Crafted from impact-resistant white plastic, ensuring durability and resistance to environmental factors.
– Axial fan design made from robust plastic, optimized for effective air movement.
TECHNICAL INFORMATION:
– Asynchronous shaded-pole motor with thermal overload protection, operating at 230V-50Hz.
– Equipped with plain bearings, lubricated for life, ensuring maintenance-free operation. Class II insulation.
– Compatible with REB electronic single-phase speed controllers for adjustable airflow.
| Weight | 1.3 kg |
|---|---|
| Dimensions | 450 × 250 × 310 mm |
| Product type |
Wall or window fan |
| Series |
HCM-N |
| Airflow (m³/h) |
220 |
| Sound level (dB(A)) |
42 |
| Power (W) |
25 |
| Temperature range (°C) |
0 / +40 |
| Electrical supply |
Single phase |
| Voltage (V) |
230 |
| Frequency (Hz) |
50 |
| IP rating |
IPX4 |
| Motor insulation class |
Class B |
| Thermal overload protection |
Yes |
| Protection Class |
Class II |
| Height (mm) |
214 |
| Width (mm) |
214 |
| Depth (mm) |
98 |
| Material |
Plastic |
| Color |
White |
| Country of origin |
Spain |
| Brand |
Soler & Palau |
| BAR/EAN |
8413893128867 |
| Manufacturer Code |
5201419800 |
| Manufacturer |
Soler & Palau |
