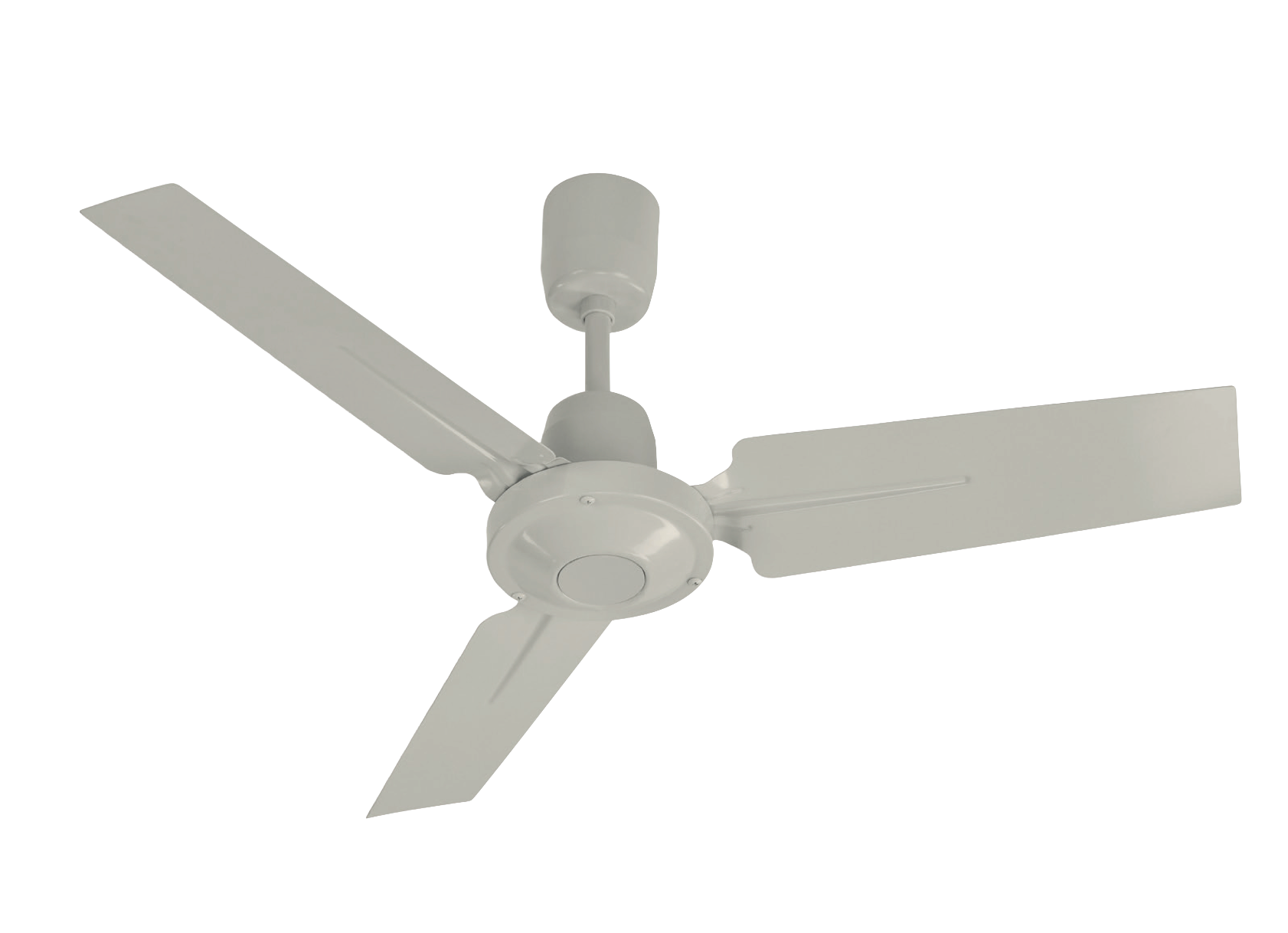

HTB-150 RC Soler & Palau ceiling fan with adjustable speed Ø1370mm (steel)
€157.20
Soler & Palau HTB-150 RC steel ceiling fan with quiet operation (53 dB(A)) and high-performance airflow. Equipped with a reverse rotation function and three-speed motor (control switch included). Three blades with corrosion protection Ø1370mm. Designed for indoor use in industrial halls, hotels, gyms, and other large spaces.
Soler & Palau HTB-150 RC Industrial 1370mm Ceiling Fan With Adjustable Speed
– Soler & Palau HTB-150 RC ceiling fan with an airflow capacity of 10,000 m³/h, operating at a low noise level of 53 dB(A) for quiet comfort.
– Designed with 3 aerodynamic blades for efficient airflow distribution and improved room ventilation.
– Range of 140 cm diameter fan models with an actual blade diameter of Ø1370 mm.
– Steel fan blades finished with epoxy powder coating (RAL 9002) provide enhanced corrosion resistance, ideal for indoor applications.
– Reverse rotation function via integrated switch allows airflow to be redirected toward the ceiling for improved air mixing.
– Three-speed operation
Three-speed controller included. It can be built-in. (Dimensions LxWxH (mm): 80x80x70 ; RAL 9002).
The speed regulator has four positions: 0/1/2/3 (OFF/High speed/Medium speed/Low speed)
– Motor with built-in thermal overload protection ensures safe and long-lasting operation.
– Suitable for continuous use within an operating temperature range from +10°C to +45°C.
– Simple ceiling installation; once mounted, fan blades must be positioned at least 2.30 m above floor level.
– The means of fitting the fan to the ceiling is capable of supporting the weight of the fan when in operation minimum 25 Kg.
– Modern design with robust construction, manufactured using high-quality materials for extended service life.
– Compatible with KIT RC HTB remote control, including 1h / 3h / 6h timer function for added convenience. (not included)
– Functions not only as an air circulation solution but also as a decorative ceiling element.
Applications
- Warehouses
- Workshops
- Industrial halls
- Commercial buildings
- Retail spaces
- Hotels
- Sports halls and gyms
- Large indoor environments
Benefits:
- Enhanced air circulation
- Improved thermal comfort
- Better airflow distribution
- Reduced stagnant air zones
- Improved heat circulation during winter
Material:
Blades: steel – ensuring wide airflow coverage, ideal for large spaces.
* to ensure protection against corrosion, the blades are coated with epoxy paint RAL 9002
Housing: high-quality plastic – providing a lightweight design and easy installation.
Set includes: support plate, motor assembly and support, blades, blades fitting screws & washers, three-speed controller, wall plugs, screws, washers, felt washers.
– Manufactured in Spain.
Accessories:
KIT RC HTB – Remote control with 1h / 3h / 6h timer for HTB-RC fans (not included)
With the remote control, can switch ON/OFF the fan and adjust the speed, also, incorporates a timer.
| Weight | 8.5 kg |
|---|---|
| Dimensions | 240 × 230 × 650 mm |
| BAR/EAN |
8413893979377 |
| Product type |
Ceiling fan |
| Series |
HTB |
| Diameter Ø (mm) |
1370 |
| Number of Speeds |
3 speeds |
| Speed control |
Three-speed controller |
| Speed (rpm) |
240/190/130 |
| Rotation direction |
Reversible |
| Airflow (m³/h) |
10.000/7.900/5.420 |
| Operating air velocity (m/s) |
2.5 |
| Sound level (dB(A)) |
53 |
| Power (W) |
65 |
| Temperature range (°C) |
+10 / +45 |
| Electrical supply |
Single phase |
| Voltage (V) |
230 |
| Frequency (Hz) |
50-60 |
| Maximum current (A) |
0.3 |
| Motor type |
AC motor |
| Thermal overload protection |
Yes |
| Height (mm) |
380 |
| Weight (kg) |
8.2 |
| Mounting type |
Ceiling mounted |
| Color |
Ivory |
| Material |
Plastic ,Steel |
| Country of origin |
Spain |
| Brand |
Soler & Palau |
