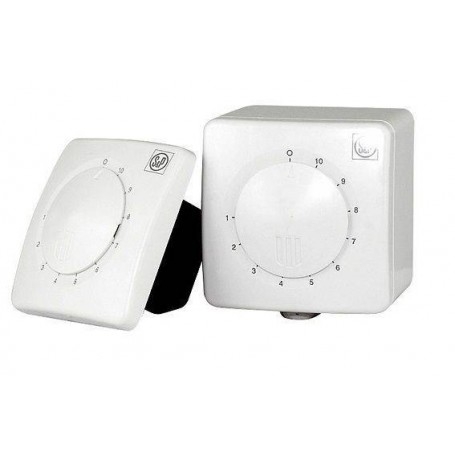

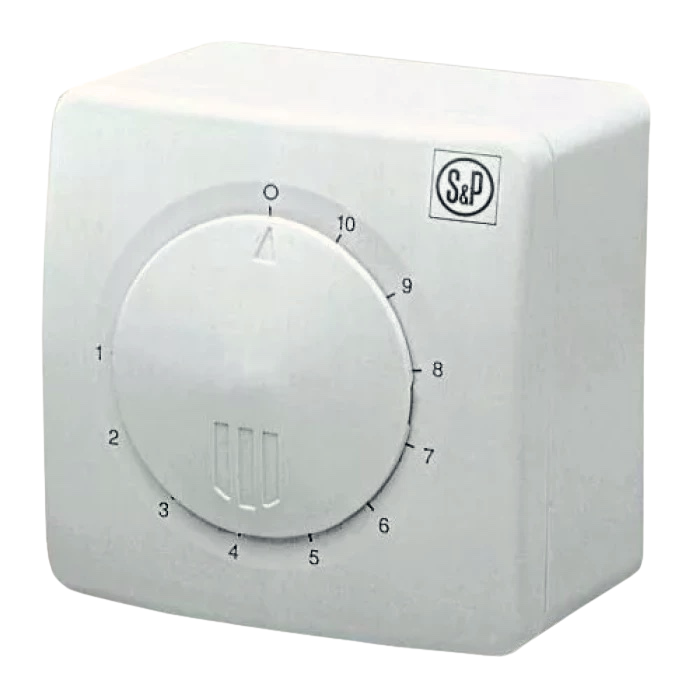

REB-1 N Soler & Palau single-phase speed controller (with wall box)
€84.95
The Soler & Palau REB-1 N is a compact electronic single-phase fan speed controller designed for wall-mount. Featuring a single rotary knob for ON/OFF and speed adjustment. Minimum speed adjustment and fuse protection, it offers a reliable and efficient solution for controlling fan airflow in residential and commercial ventilation systems.
– The Soler & Palau REB-1 N is an electronic single-phase fan speed switch in wall box designed for wall-mount.
– The controller is equipped with a multifunctional rotary knob that combines ON/OFF switching and smooth speed adjustment.
– To ensure safe and stable performance, the REB-1 includes fuse protection.
– The integrated minimum speed adjustment function helps maintain consistent fan operation, preventing motor strain and improving energy efficiency.
– Manufactured from durable ABS box, the REB-1 is built for long-lasting, safe operation and meets Class II insulation and IP44 protection standards.
– Suitable for both residential and light-commercial environments, this controller is an effective and easy-to-use solution for managing single-phase ventilation fans while maintaining a clean, wall-mounted appearance.
Maximum current: 1 A
Minimum current: 0.15 A
Power: 220 VA
Fuse protected + spare fuse included.
Minimum speed adjustment.
Single ON/OFF and speed regulation control knob.
– Made in Spain.
| Weight | 0.23 kg |
|---|---|
| Dimensions | 75 × 85 × 85 mm |
| Product type |
Electronic single-phase speed controller |
| Switch type |
ON/OFF and speed controller switch |
| Mounting type |
Wall mounted ,Surface mounted |
| Height (mm) |
80 |
| Width (mm) |
80 |
| Depth (mm) |
68 |
| Maximum current (A) |
1 |
| Voltage (V) |
50 |
| Frequency (Hz) |
220-240 |
| Temperature range (°C) |
0 / +40 |
| Protection Class |
Class II |
| IP rating |
IP44 |
| Color |
White |
| Material |
Plastic |
| Country of origin |
Spain |
| Brand |
Soler & Palau |
