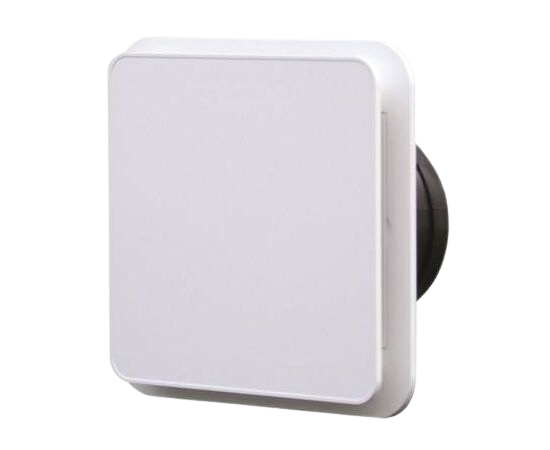

BDOP 160 exhaust-supply air valve Ø160mm Soler & Palau

The Soler & Palau BDOP 160 supply and exhaust air diffuser Ø160 mm is a high-quality ventilation component designed for efficient air distribution in residential and commercial spaces.

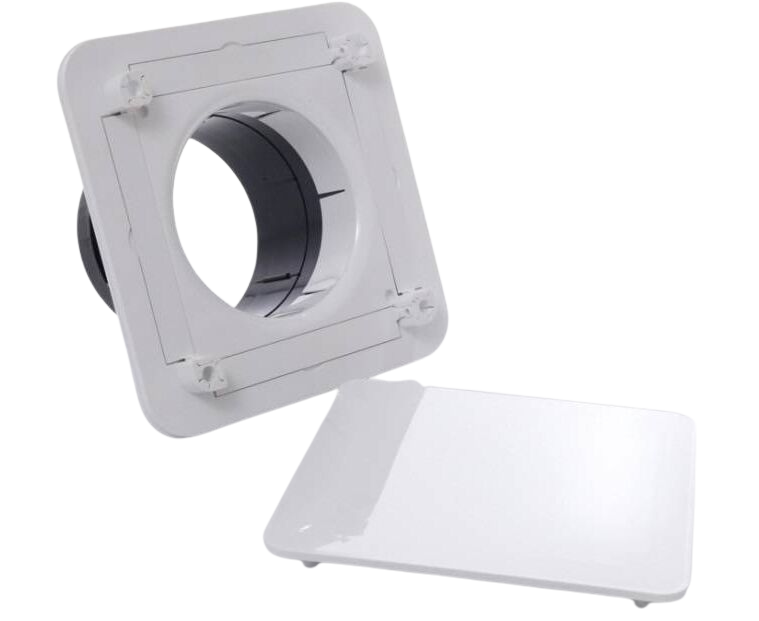

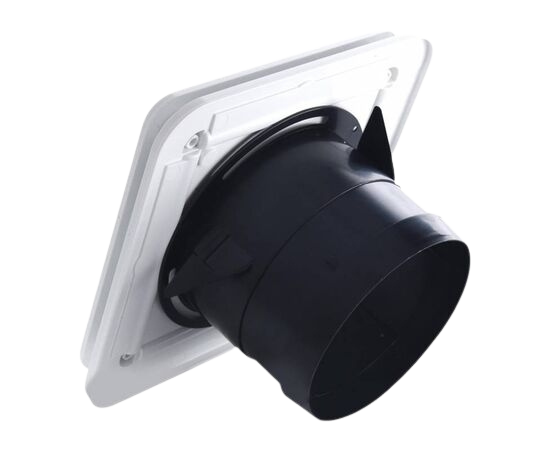

Made from durable plastic with a metal connection ring, this air valve ensures long-lasting performance and reliability.

Its modern white square design fits perfectly into any interior, offering quiet operation and precise airflow control.

Suitable for ventilation systems with single or dual airflow, the BDOP 160 allows four-way adjustment of air direction and distance, ensuring optimal comfort and air balance.

Easy to install and maintain, it can be equipped with an airflow regulator inside the duct for better efficiency.

Manufactured in Spain, the BDOP 160 combines energy efficiency, low noise, and durability — an ideal choice for modern ventilation systems. The

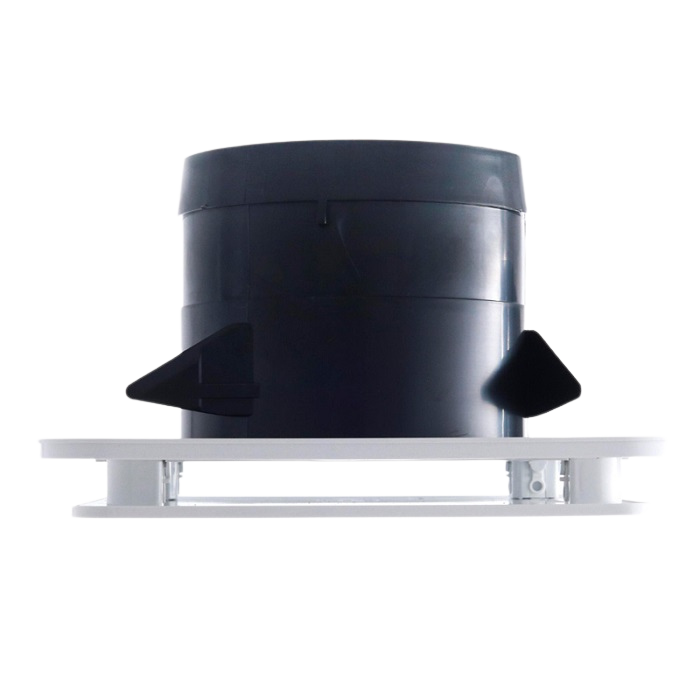

Soler & Palau BDOP model includes the features of the BDO model and adds a connection sleeve with anchors for plasterboard installation.

Technical Information:
Connection diameter Ø : 160 mm
Airflow: 120-240 m3/h
Material: Plastic body / metal connection ring

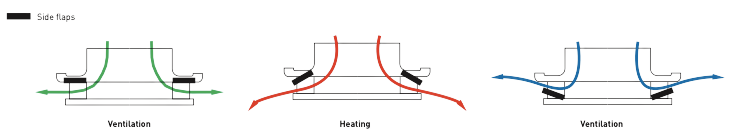

Adjustment possibilities of the side flaps
Possible to change airflow direction

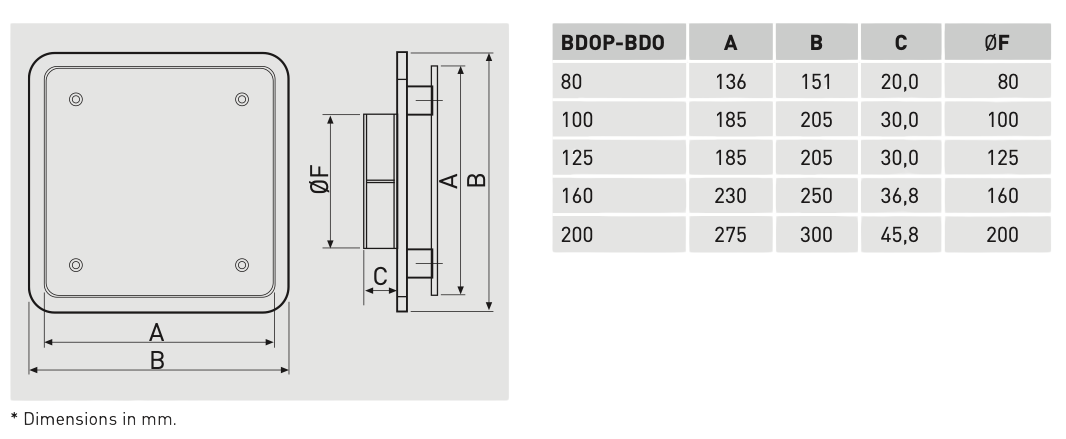

Outer body width: 250 mm
Outer body height: 250 mm
Connection ring depth: 36.8 mm
